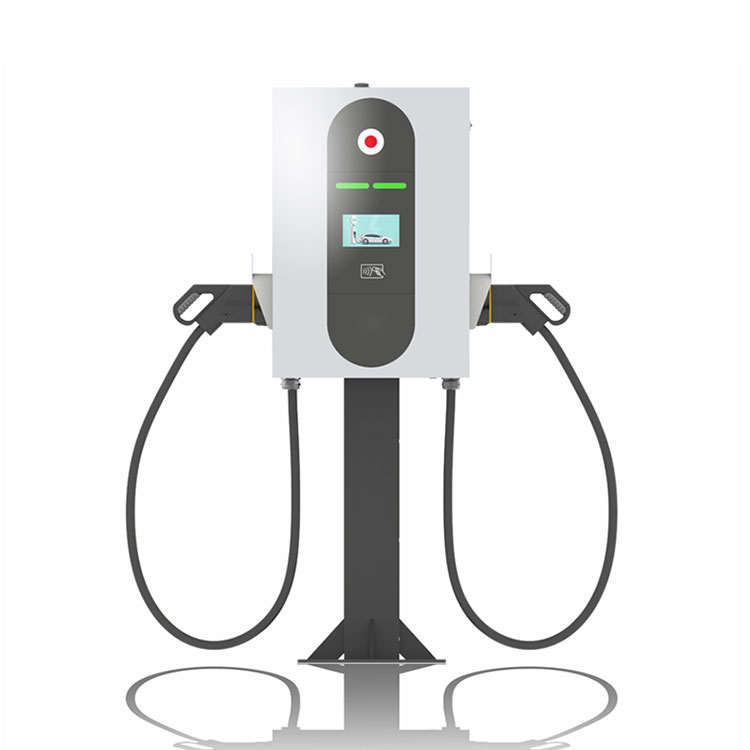

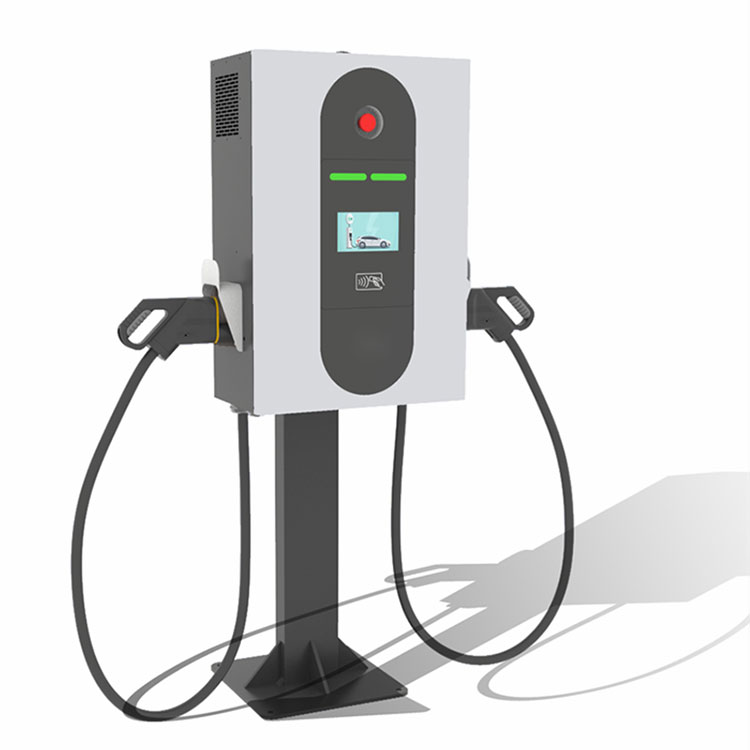

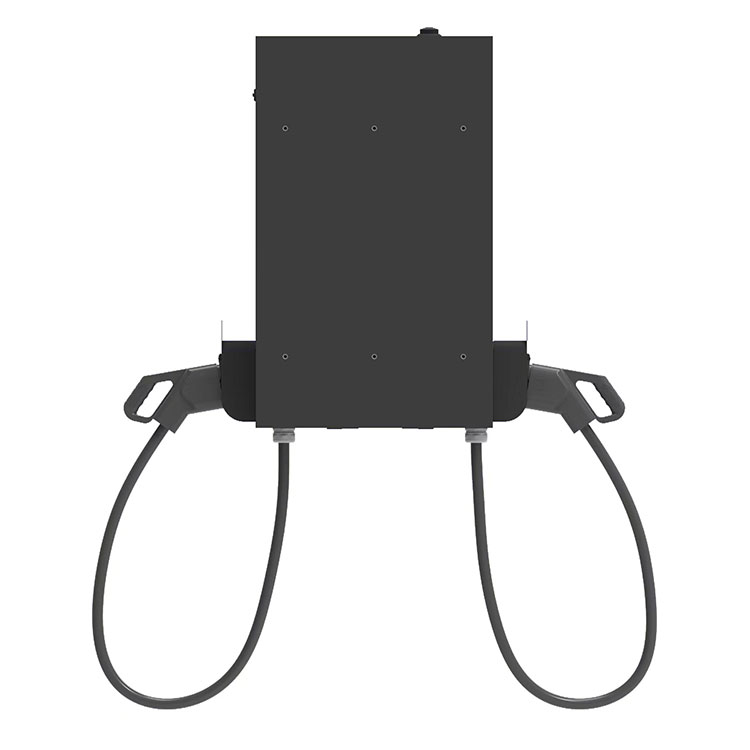

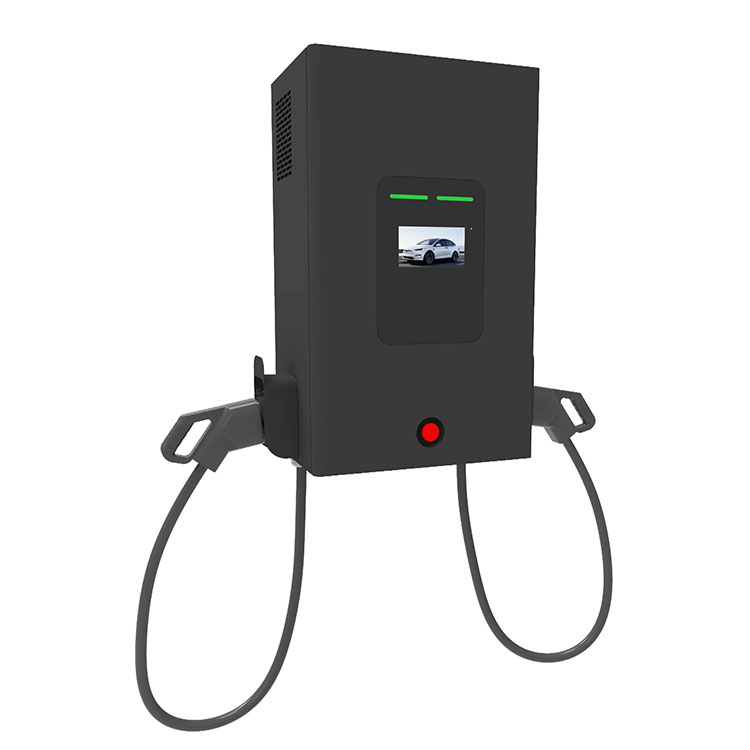

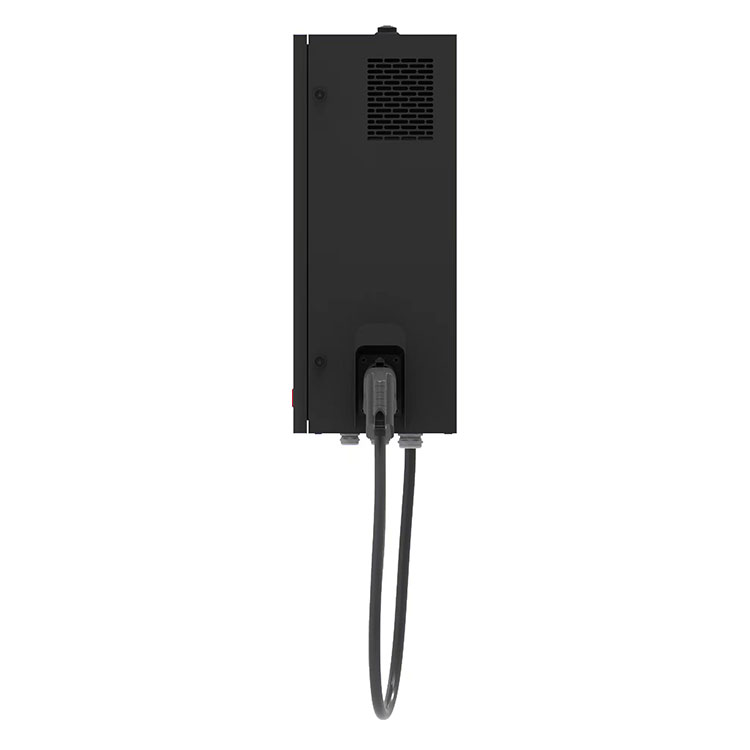

Ultra 40KW Wall-hung Multi-Standard
Charges EV cars in less than 0.5 hour (typically) Maintenance free cooling system without air filter Compatible with all worldwide AC networks Robust design for outdoor use (IP54)
Integrated heat management system Support Customer server protocol or OCPP Front panel & user menu are customizable
Detail

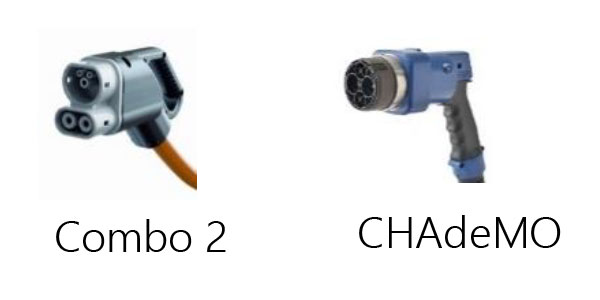

Available charging protocols
Main features
Its rated 4 0 kW output power will charge most EV cars typically in about half hour, via its Combo 2 and CHAdeMO output.
Adaptable thanks to its customizable front panel, it is an ideal solution for providing fast charging points at destination charging, EV infrastructure and operators, transit charging and Public Transportation scenarios.
Connected wirelessly via Customer server protocol or OCPP, upgrades, supervision and operation can be done remotely in a smart and optimized way.
Main applications
Destination charging
EV infrastructure and operators Transit charging
Public Transportation
| INPUT | INPUT and AC OUTPUT PROTECTIONS |
| Voltage : 400VAC±10% 50/60Hz 3 Phase (3P + Ground + N) rated input current: 72A | Leakage current protetcion |
| Short-circuit protection | |
| Power factor: > 0,98 | Over-current protection |
| Efficiency: 94% | Surge protection |
| DC OUTPUT | Over/Under-voltage protection |
| Voltage: 200VDC to 1000VDC | DC OUTPUT PROTECTIONS |
| Current: 1.5A - 125A CCS Combo2 / CHAdeMO | Short-circuit protection |
| Rated output power : 50kW DC | Over-current protection |
| INSULATION | Polarity reverse protection |
| Input / Output : 2500VDC | Insulation monitor device |
| Input / PE : 2500VAC | Charging plug defects protection |
| Output / PE : 2000VDC | Communication failure protection |
| OPERATING TEMPERATURE | Over temperature and temperature regulation |
| Temperature: -25°C to +50°C | MECHANICAL FEATURES |
| Relative Humidity: 10% to 95% | Dimensions : H 780x l 315x W 545 (mm) |
| COMMUNICATION BUS | Weight : 70 kg |
| COMBO 2 and CHAdeMO interface | IP55, IK10 (exclusive screen IK10) |
| Cable length :5 meters standard, other on request |
Communication
Vehicle Interface:
CAN (CHAdeMO / GB)
PLC GreenPhy (COMBO)
Supervision capability:
Wireless: 4G via OCPP 1.6
LAN/TCP-IP
Access & Identification:
RFID reader
guration & options
Display & Communication module:
● 7 inch touch screen
● Menu graphics are adjustable
● OCPP1.6J
● 4G, Ethernet connection, Blue Tooth, WiFi
Standard compliance
RED Directive 2014/53/EU (pending)
EMC Directive 2014/30/EU
LVD Directive 2014/35/EU
Charge: ISO15118 / DIN70121
