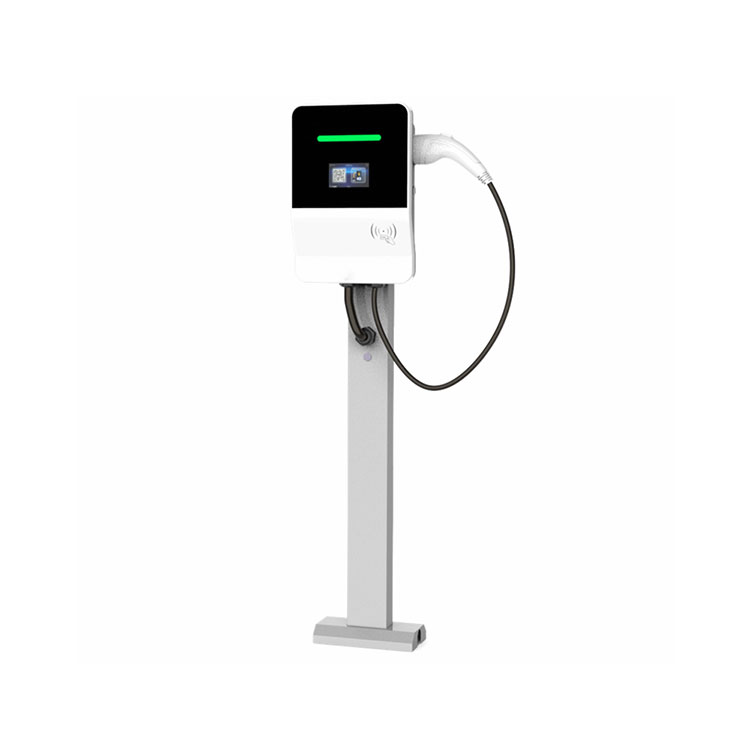

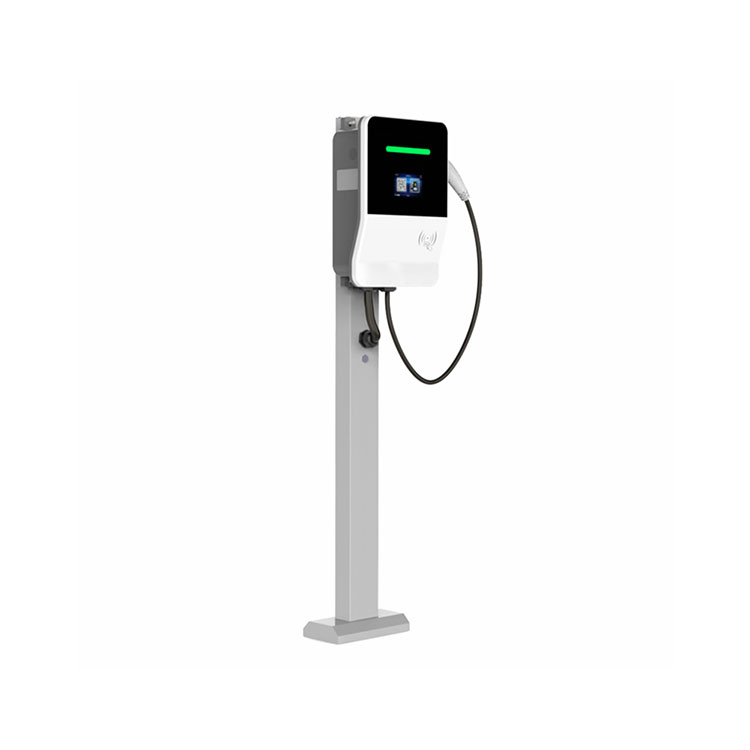

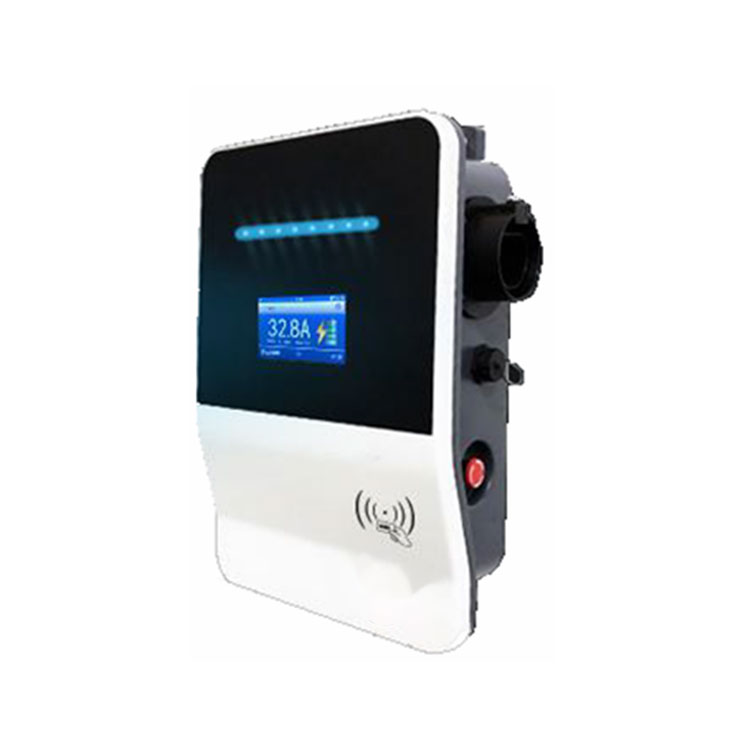

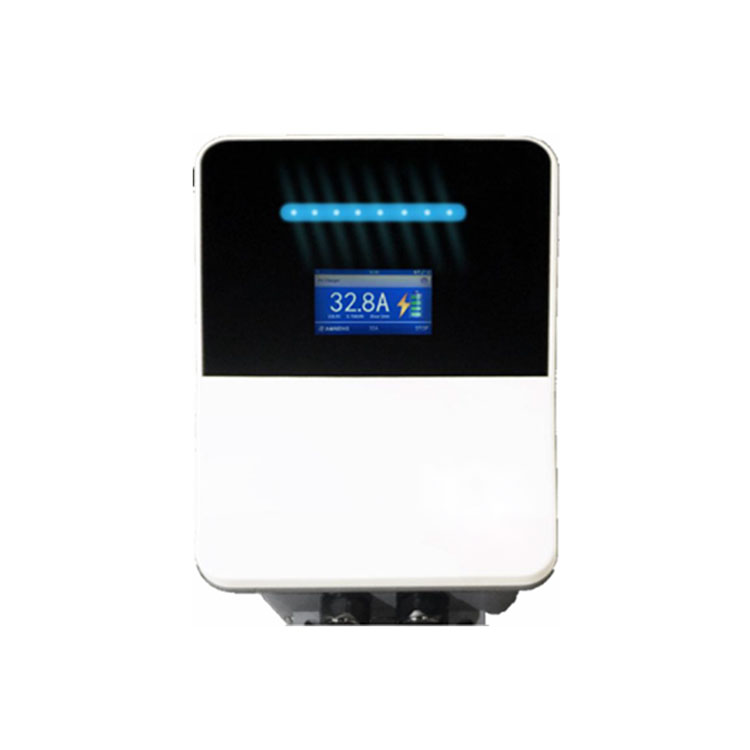

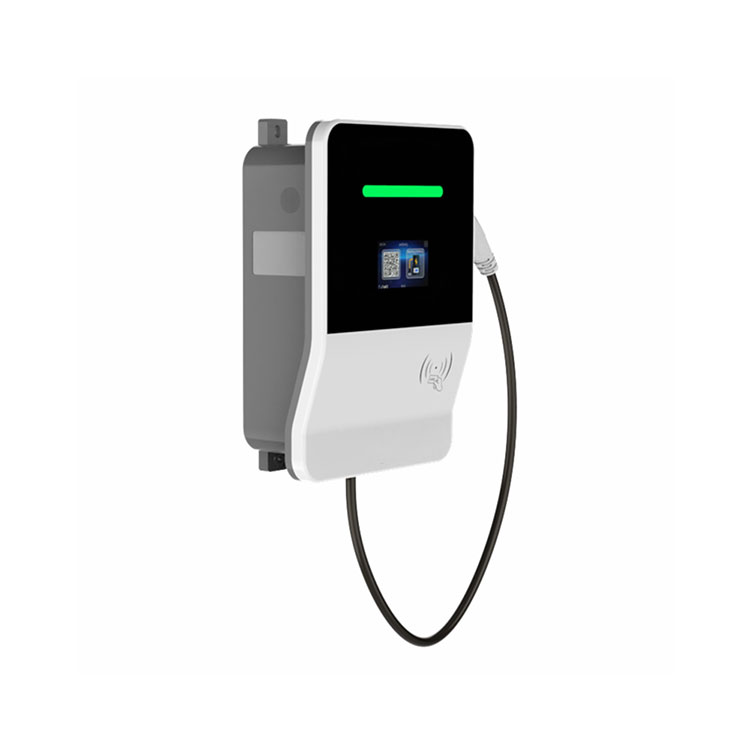

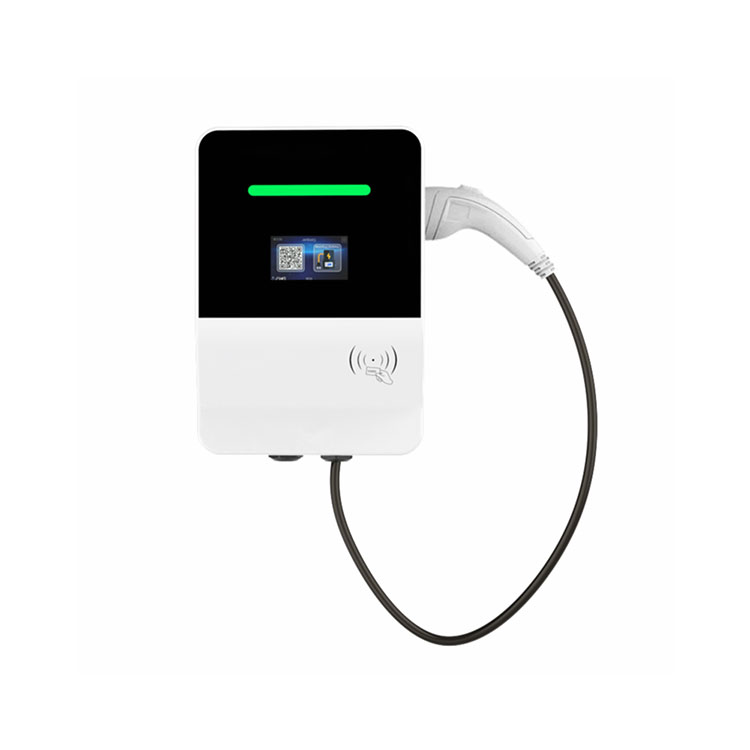

Intelligent AC Charger

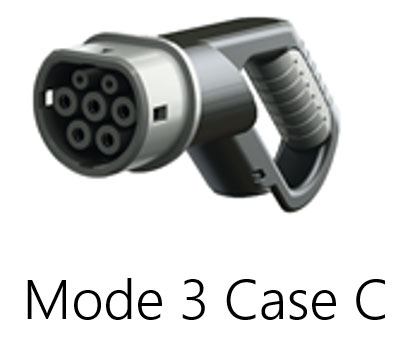

Compact design for Mode Case C
Compatible with Europe AC networks
Robust design for outdoor use (IP65)
Support Customer server protocol or OCPP
Front panel & user menu are customizable
Detail
Available charging protocols
Main features
Its rated 7/11/22kW output power will charge most EV cars typically, via its connector. Based on a compact design, the maintenance needs are greatly reduced. Adaptable thanks to its customizable front panel, it is an ideal solution for providing charging points at both home and public charging, EV infrastructure and operators. Connected wirelessly via Customer server protocol or OCPP, upgrades, supervision and operation can be done remotely in a smart and optimized way.
| Model | Rating | LCD | RFID | Network | OCPP |
| ACE1-230V/32A | 7kVA | 4.3" | √ | 4G or LAN or WIFI/BT | OCPP 1.6 |
| ACE1-400V/16A | 11kVA | 4.3" | √ | 4G or LAN or WIFI/BT | OCPP 1.6 |
| ACE1-400V/32A | 22kVA | 4.3" | √ | 4G or LAN or WIFI/BT | OCPP1.6 |
| INPUT | INPUT and AC OUTPUT PROTECTIONS |
| Voltage : 400VAC 50/60Hz / or 230VAC (7KW only) | Leakage current protetcion |
| Standby consumption: 5W | Short-circuit protection |
| AC OUTPUT | Over-current protection |
| 7KW: 230VAC @ 32A 1Phase 11kW: 400VAC @16A 3Phases 22kW: 400VAC @32A 3Phases | Surge protection |
| Over/Under-voltage protection | |
| OPERATING TEMPERATURE | RCD: Type A (30mA) + 6mA (DC) |
| Temperature: -20°C to +55°C | |
| Relative Humidity: 5% to 95% | MECHANICAL FEATURES |
| COMMUNICATION BUS | Dimensions : H 410 x W 285 x D 150 (mm) |
| IEC62196 Type 2 | Weight : 8 kg |
| Cable length : 3.5 meters standard, other on request | IP65 outdoor |
Communication
Vehicle Interface:
PWM
Supervision Capability:
Wireless: 4G, Ethernet, WIFI or Bluetooth
Access & Identification:
RFID reader: ISO14443, TypeA, Mifarel
Plug & Charge (Simplified version)
Touch Screen 4.3inch (Premium version)
guration & options
Display & communication module
4.3 inch touchscreen (premium only)
Signal LED indicator
Menu graphics are adjustable
Front Panel
Standard anthracite panel
Customizable with 4 color serigraphy
Input connection
3P+N 400V
Measure
MID AC Powermeter
Output cable
Length 3.5 meters, other on request
Standard compliance
EMI CISPR22/EN 55022 Class B
EMC EN 61000-4-5 ±2KV/ ±4KV perf. Criteria B
IEC 61851-1 2017 & IEC 61851-21-2 2018
LVD Directive 2014/35/EU
