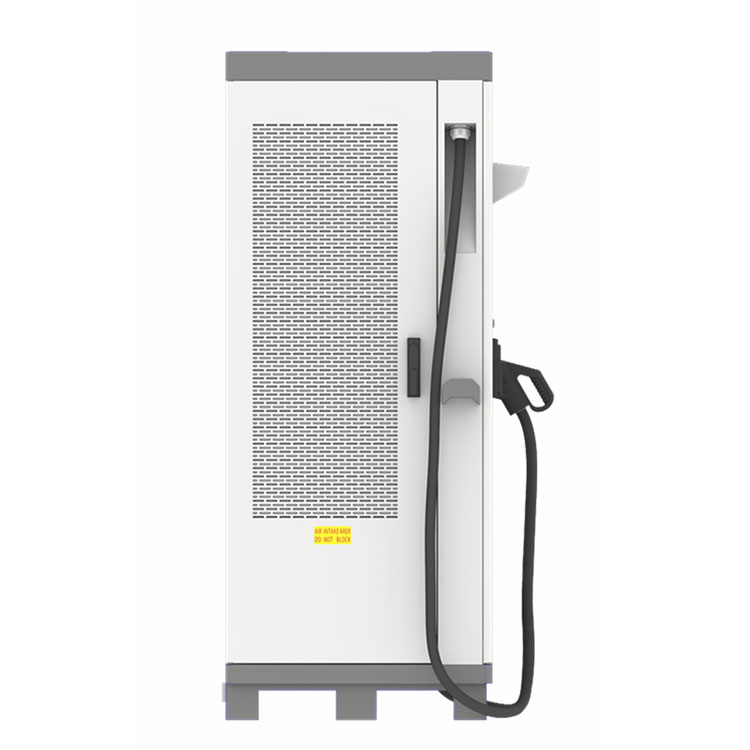

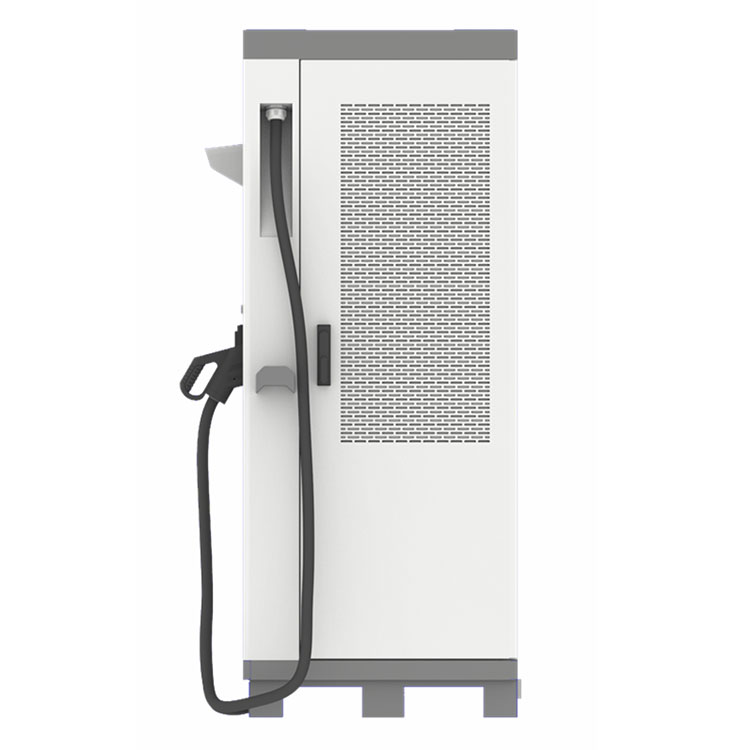

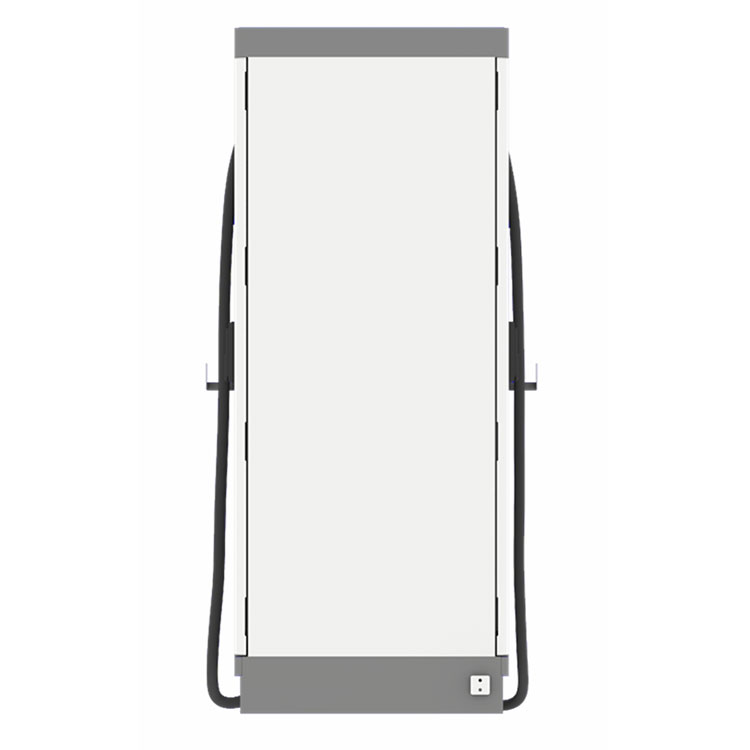

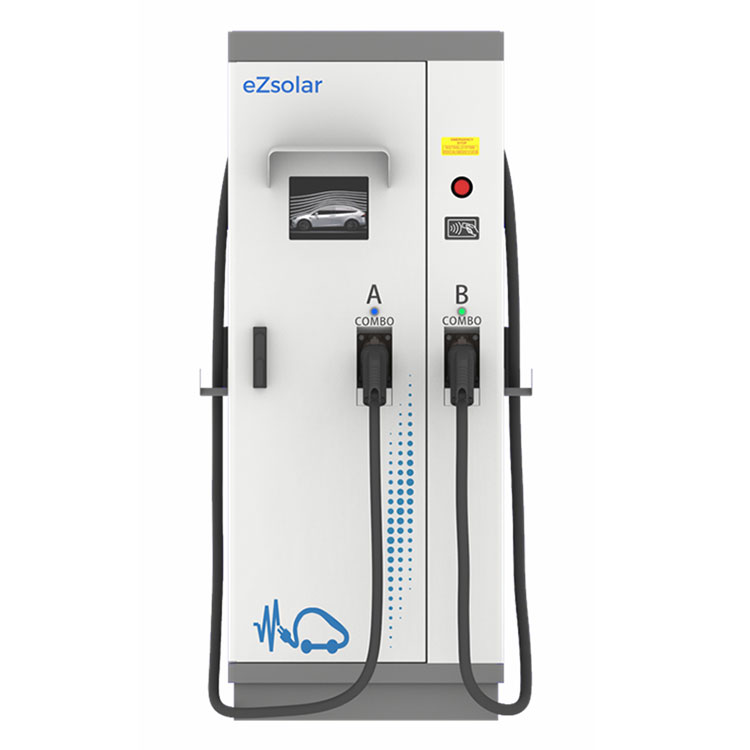

90/120/150/180 KW Station Dual CCS2
Charges EV cars in less than 0.5 hour (typically)
Dual CCS2 Output charge 2 EVs simultaneously
DC Output Voltage Range suitable for all EV Cars & Buses
Robust design for outdoor use (IP54)
Integrated heat management system
Support Customer server protocol or OCPP 1.6
Front panel & user menu are customizable
Detail
Available charging protocols
Main features
Its rated output power will charge most EV cars typically in about less than half hour, via its dual Combo 2 outputs. Based on dynamic Power Management, charges up to 2 EVs simultaneously up to rated power. Adaptable DC- Power up to 180kW. Thanks to its customizable front panel, it is an ideal solution for providing fast charging points at destination charging, EV infrastructure and operators, transit charging and Public Transportation scenarios. Connected wirelessly via Customer server protocol or OCPP, upgrades, supervision and operation can be done remotely in a smart and optimized way.
Main applications
> Destination charging
> EV infrastructure and operators
> Transit charging
> Public Transportation
| INPUT | INPUT and AC OUTPUT PROTECTIONS |
| Voltage : 400VAC±10% 50/60Hz 3 Phase (3P + PE + N) | Leakage current protection |
| rated input current: 130A, 175A, 220A, 260A | RCD Type A standard |
| Power factor: > 0,98 | Short-circuit protection |
| Efficiency: 95% | Over-current protection , Surge protection |
| DC OUTPUT | Over/Under-voltage protection |
| Voltage: 200VDC to 1000VDC | DC OUTPUT PROTECTIONS |
| Current: Max. 200A each CCS Combo2 Connector | Short-circuit protection, Over-current protection |
| Rated output power : 90kW, 120kW, 150kW, 180kW DC | Polarity reverse protection |
| OPERATING PARAMETERS | Insulation monitor device |
| Noise: ≤65dB | Charging plug defects protection |
| Cooling Method: Forced Air | Communication failure protection |
| OPERATING TEMPERATURE | Over temperature and temperature regulation |
| Temperature: -25°C to +55°C | MECHANICAL FEATURES |
| Relative Humidity: 5% to 95% | Dimensions : H 1800 x I 720 x W 720 |
| COMMUNICATION BUS | Weight : up to 350 kg |
| COMBO 2 Cable length: 5m standard, other on request | IP54, IK10 |
Communication
Vehicle Interface:
PLC GreenPhy (COMBO)
Supervision capability:
Wireless: 4G via OCPP 1.6
LAN/TCP-IP
Access & Identification:
RFID reader
guration & options
Display & Communication module
7 inch touch screen
User Menu with adjustable graphics
Ethernet connection
Charger status LED Front Panel
IES standard anthracite panel
Customizable with 4 color serigraphy Input connection & Protection
3P+N 400V (Europe)
3P+N 380V (China) Output cable
Length 5 meters, other on request
Combo2
Standard compliance
Safety: EN61851-23:2014, EN61851-1:2010, IEC61851-1:2017
EMC: IEC61851-21-2:2018
EV Compliance: ISO15118 / DIN70121
