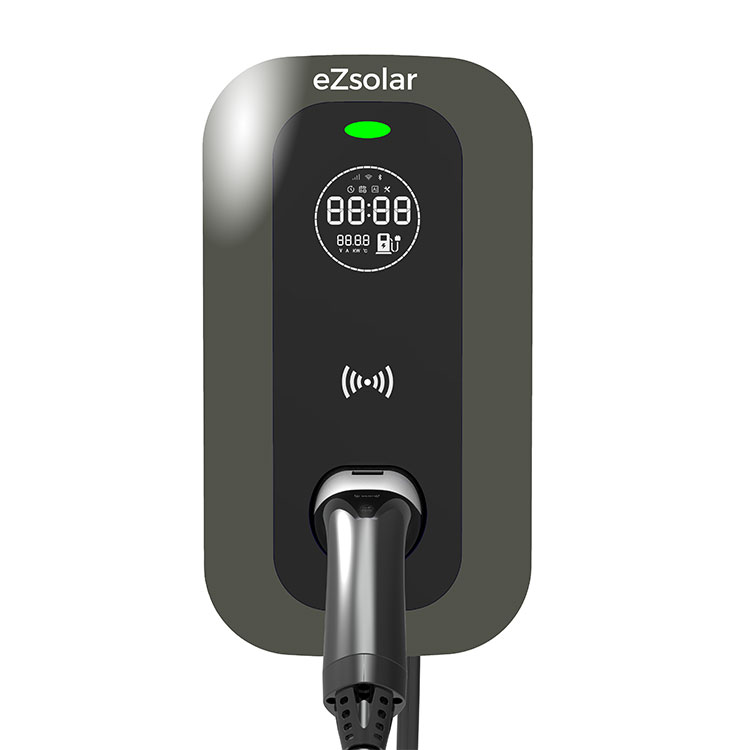

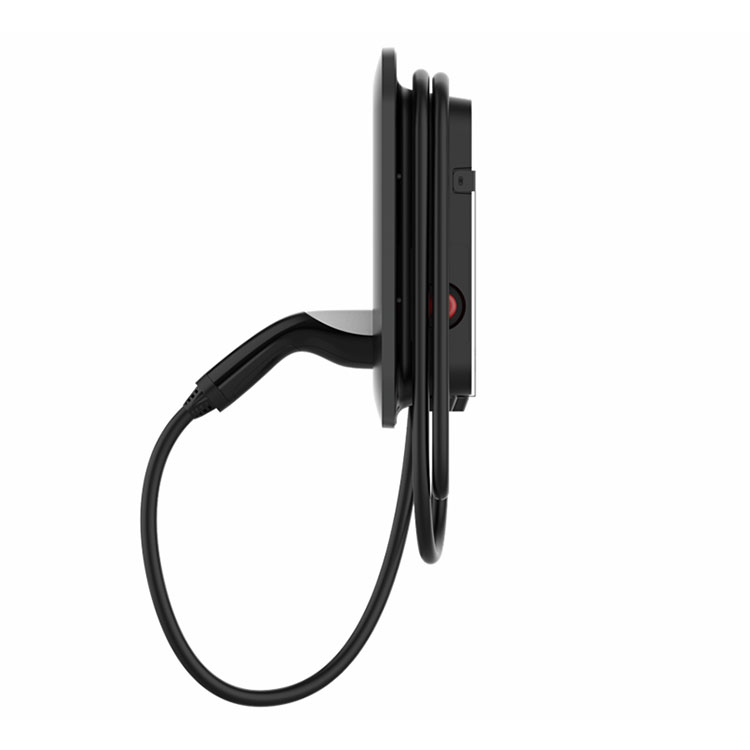

ACE1 Series 7/11/22KVA IEC2 Charger

Compact design for Mode 3 Case B and Case C
Compatible with Europe AC networks
Robust design for outdoor use (IP65)
Support Customer server protocol or OCPP
Front panel & user menu are customizable

Detail

Model	Rating	Display	RFID	Network	OCPP
NEO-07-C	7kVA	4" LCD	√	WIFI/BT standard, 4G optional	OCPP 1.6 Optional
NEO-07-P	7kVA	7" TFT	√	WIFI/BT standard, 4G optional	OCPP 1.6
NEO-22-P	22kVA	7" TFT	√	WIFI/BT standard, 4G optional	OCPP1.6

Compact design for Mode 3 Case B and Case C

Compatible with Europe AC networks

Robust design for outdoor use (IP65)

Support Customer server protocol or OCPP

Front panel & user menu are customizable

INPUT	INPUT and AC OUTPUT PROTECTIONS
Voltage : 400VAC 50/60Hz / or 230VAC (7KW only)	Leakage current protetcion
Standby consumption: 2W	Short-circuit protection
AC OUTPUT	Over-current protection
7KW: 230VAC @ 32A 1Phase	Surge protection
22kW: 400VAC @32A 3Phases	Over/Under-voltage protection
OPERATING TEMPERATURE	RCD: Type A (30mA) + 6mA (DC)
Temperature: -20°C to +55°C	Built-in power meter at 2% accuracy
Relative Humidity: 5% to 95%	MECHANICAL FEATURES
COMMUNICATION BUS	Dimensions : H 405 x W 225 x D 104 (mm)
IEC62196 Type 2	Weight : 4.2 kg ,(Case C); 3.0 kg (Case B)
Cable length : 5 meters standard, other on request	IP65 outdoor
