Built-in Backup Port with Automatic UPS switching
Up to 190A max charge/discharge current
6 customisable charge/discharge time settings
10 second 200% surge power backup overload capability
Generator connectivity with multiple input methods and automatic generator On/Off control
Supports 1ph and 3ph flexible connection with max 48kW in parallel
Intelligent AC coupling scheme, easily upgrade existing grid-connected systems
Supports peak shaving control in both "self-use" and "generator" mode
Compatible with lead-acid and lithium batteries, with multiple battery protection features

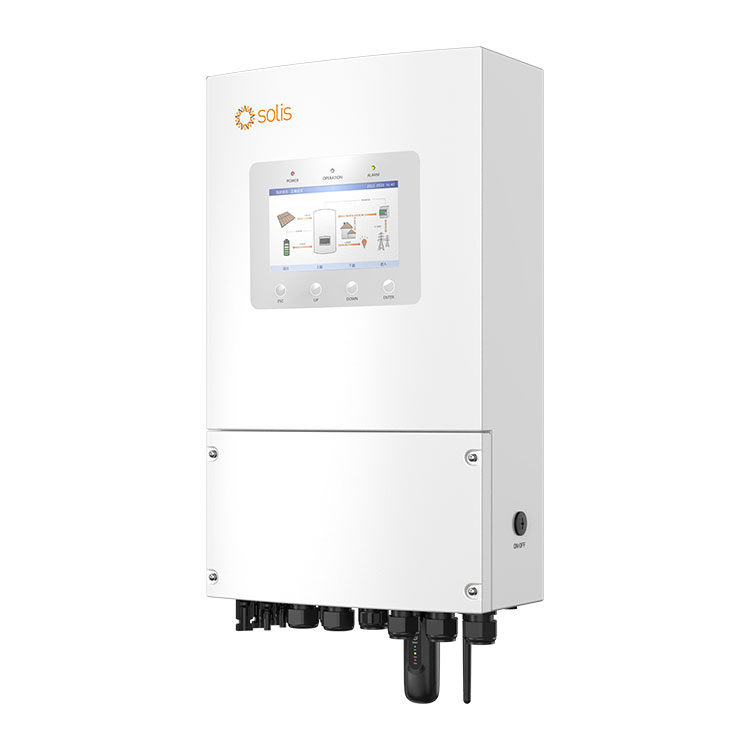

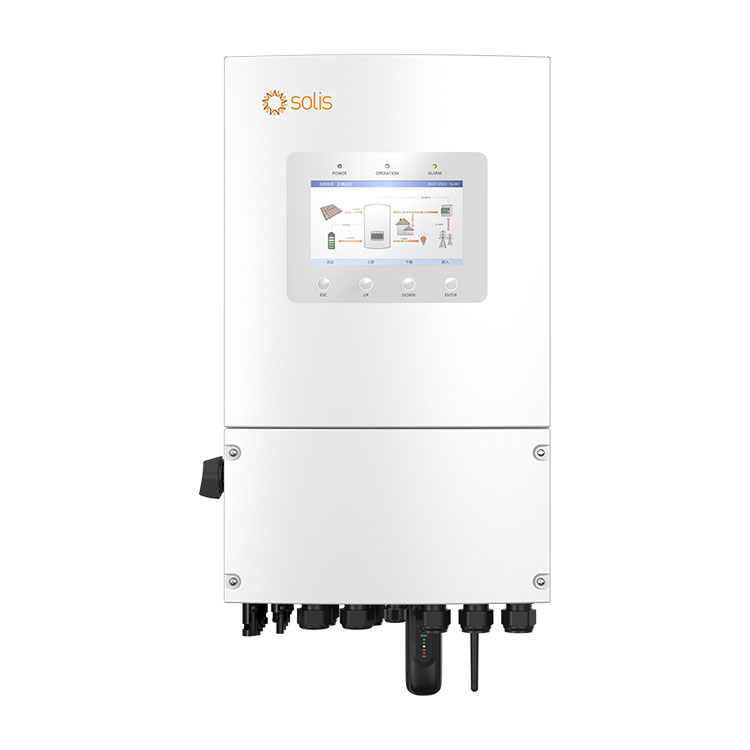

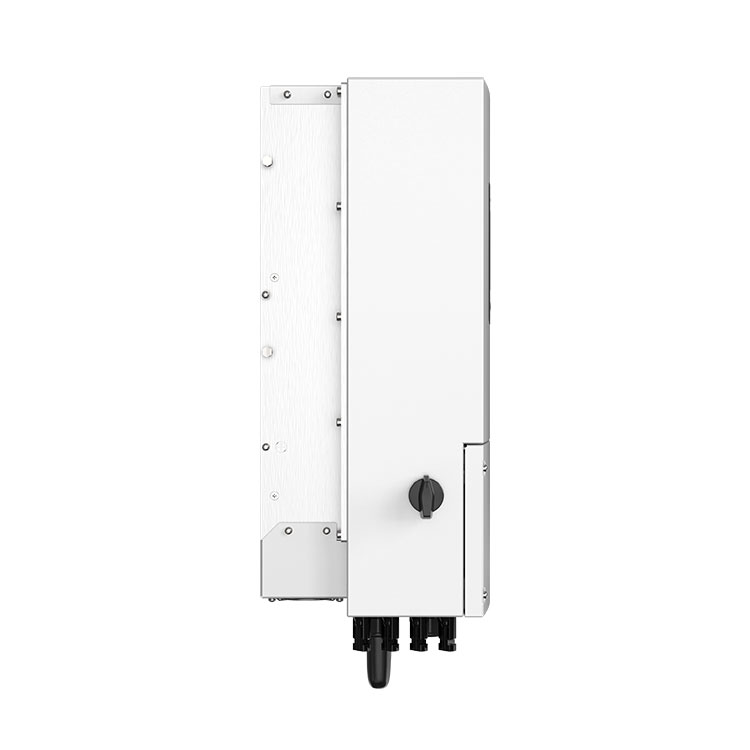

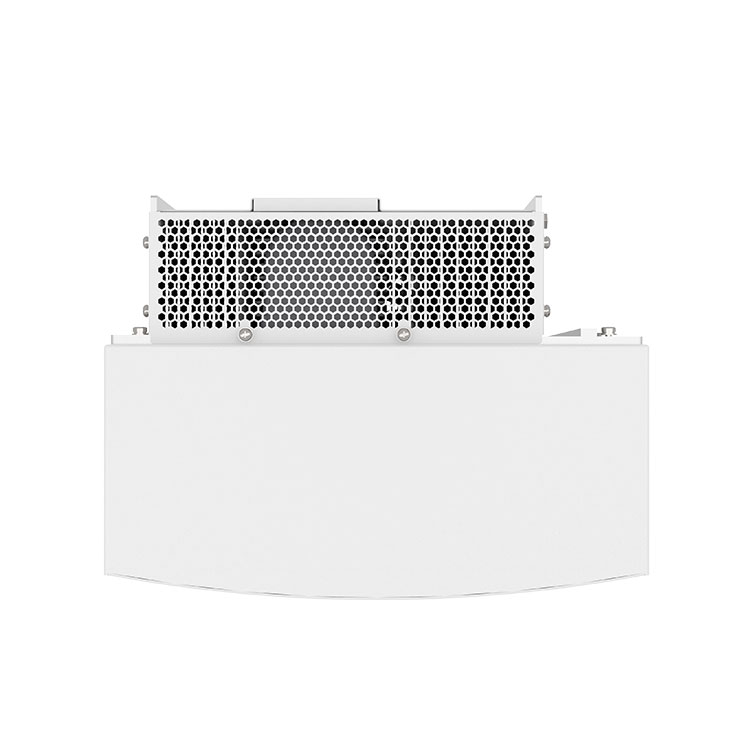

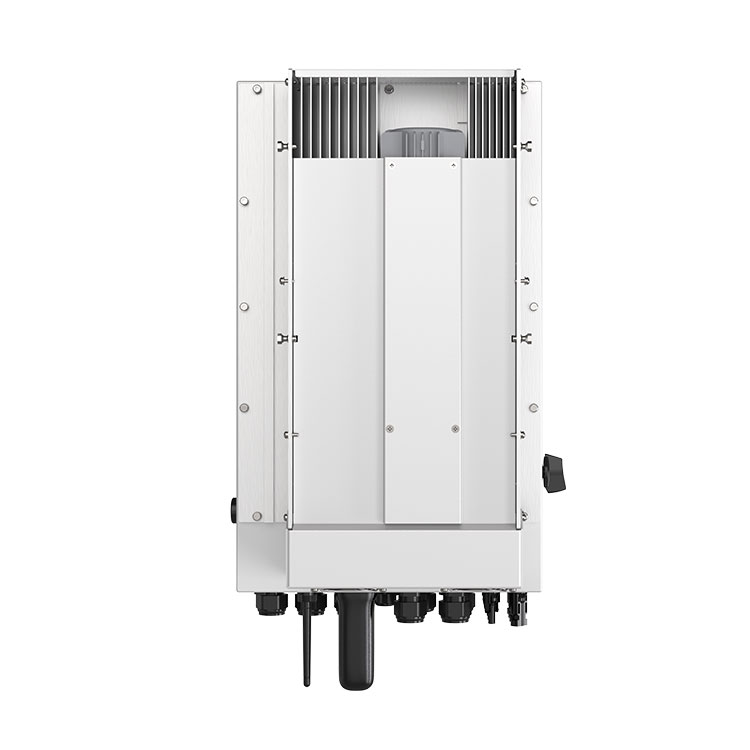

S6-EH1P3K-L-PLUS / S6-EH1P3.6K-L-PLUS
S6-EH1P5K-L-PLUS / S6-EH1P6K-L-PLUS
S6-EH1P8K-L-PLUS
Models | 3K | 3.6K | 5K | 6K | 8K |
Input DC (PV side) | |||||
Recommended max PV array size | 6 kW | 7.2 kW | 10 kW | 12 kW | 16 kW |
Max. usable PV input power | 4.8 kW | 5.76 kW | 8 kW | 9.6 kW | 12.8 kW |
Max. input voltage | 500 V | ||||
Rated voltage | 330 V | ||||
Start-up voltage | 90 V | ||||
MPPT voltage range | 90-435 V | ||||
Max. input current | 16 A / 16 A | 32A / 32 A | |||
Max. short circuit current | 20 A / 20 A | 40 A / 40 A | |||
MPPT number/Max. input strings number | 2/2 | 2/4 | |||
Battery | |||||
Battery type | Li-ion / Lead-acid | ||||
Battery voltage range | 40-60 V | ||||
Max. charge / discharge power | 3 kW | 3.6 kW | 5 kW | 6 kW | 8 kW |
Max. charge / discharge current | 70 A | 80 A | 112 A | 135 A | 190 A |
Communication | CAN/RS485 | ||||
Output AC (Grid side) | |||||
Rated output power | 3 kW | 3.6 kW | 5 kW | 6 kW | 8 kW |
Max. apparent output power | 3 kVA | 3.6 kVA | 5 kVA | 6 kVA | 8 kVA |
Operation phase | 1/N/PE | ||||
Rated grid voltage | 220 V / 230 V | ||||
Rated grid frequency | 50 Hz / 60 Hz | ||||
Rated grid output current | 13.7 A / 13.1 A | 16.4 A / 15.7 A | 22.8 A / 21.8 A | 27.3 A / 26.1 A | 36.4 A / 34.8 A |
Max. output current | 13.7 A / 13.1 A | 16.4 A / 15.7 A | 22.8 A / 21.8 A | 27.3 A / 26.1 A | 36.4 A / 34.8 A |
Power factor | >0.99 (0.8 leading - 0.8 lagging) | ||||
THDi | <2% | ||||
Input AC (Grid side) | |||||
Input voltage range | 187-253 V | ||||
Max. input current | 21 A | 25 A | 32 A | 40 A | 50 A |
Frequency range | 45-55 Hz / 55-65 Hz | ||||
Output AC (Back-up) | |||||
Rated output power | 3 kW | 3.6 kW | 5 kW | 6 kW | 8 kW |
Max. apparent output power | 2 times of rated power, 10 s | ||||
Back-up switch time | <4 ms | ||||
Rated output voltage | 1/N/PE, 220 V / 230 V | ||||
Rated frequency | 50 Hz / 60 Hz | ||||
Rated output current | 13.7 A / 13.1 A | 16.4 A / 15.7A | 22.8 A / 21.8 A | 27.3 A / 26.1 A | 36.4 A /34.8 A |
Max. AC Passthrough current | 35 A | 35 A | 40 A | 40 A | 50 A |
THDv (@linear load) | <2% | ||||
Efficiency | |||||
Max. efficiency | 97.5% | ||||
EU efficiency | 96.5% | ||||
BAT charged by PV/AC Max. efficiency | 95.3% / 93.9% | ||||
BAT discharged to AC Max. efficiency | 93.8% | ||||
Protection | |||||
Ground fault monitoring | Yes | ||||
DC reverse-polarity protection | Yes | ||||
Integrated AFCI (DC arc-fault circuit protection) | Yes (1) | ||||
Protection class/Over voltage category | I / II (PV and BAT), III (MAINS and BACKUP and GEN) | ||||
General Data | |||||
Dimensions (W*H*D) | 335*560*227 mm | ||||
Weight | 21.6 kg | 22.2 kg | |||
Topology | High frequency isolation (for battery) | ||||
Operating ambient temperature range | -40 ~ +60°C | ||||
Ingress protection | IP66 | ||||
Cooling concept | Natural convection | Intelligent redundant fan-cooling | |||
Max. operation altitude | 4000 m | ||||
Grid connection standard | NRS 097-2-1, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA | ||||
Safety/EMC standard | IEC/EN 62109-1/-2, EN 61000-6-2/-3 | ||||
Features | |||||

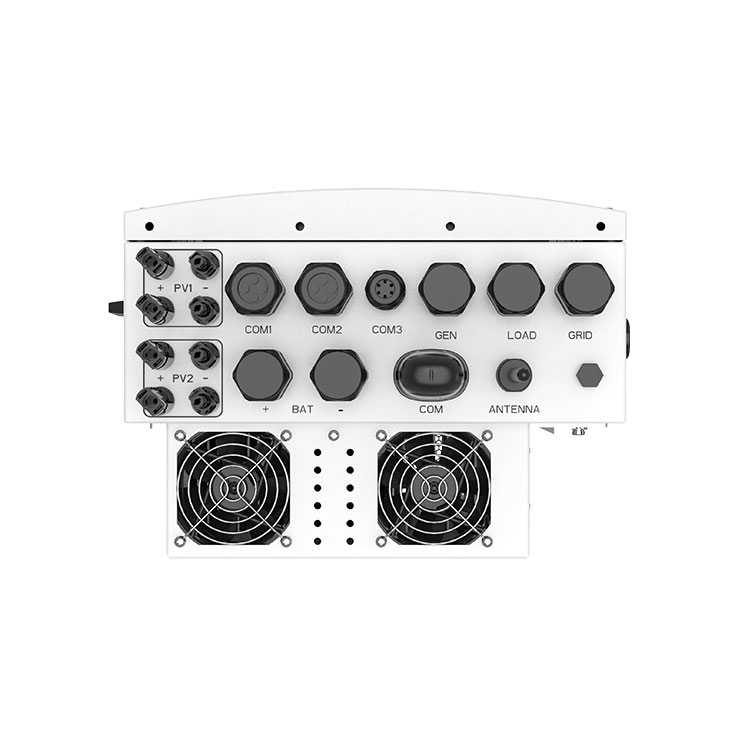

DC connection | MC4 plug (PV port) / Terminal Block (BAT port) | ||||
AC connection | Terminal Block | ||||
Display | LED + APP | ||||
Communication | RS485, CAN, Optional: Wi-Fi, GPRS, LAN |
