Industry leading 50A/10kW max charge/discharge rating
Automatic UPS switching
Supports Peak Shaving Mode
Pre-made Battery, Meter and CAN cabling to reduce installation time
Supports Unbalanced and Half-Wave Loads on both the Grid and Backup Port
Compatible with multiple brands of lithium battery models
Increased battery protection and operation features to extend battery life

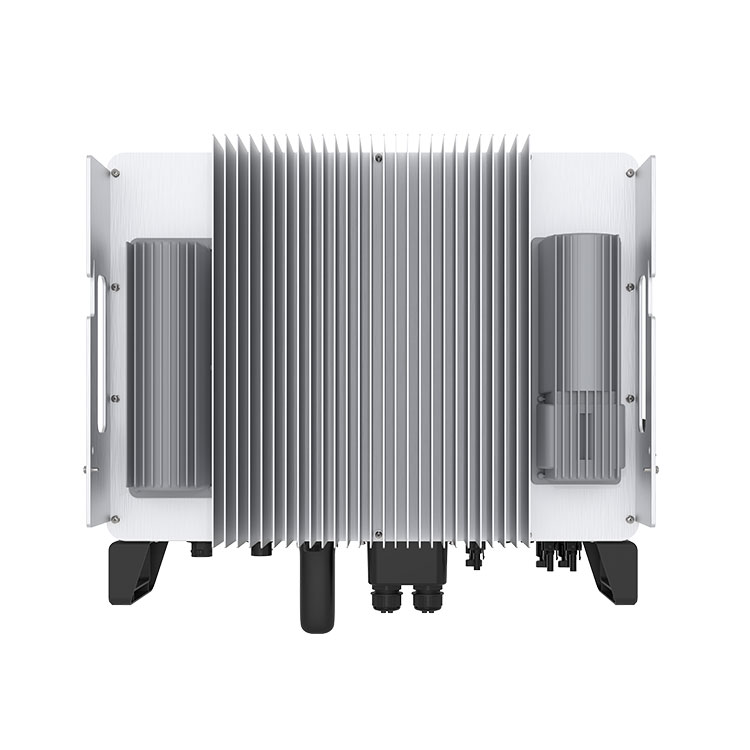

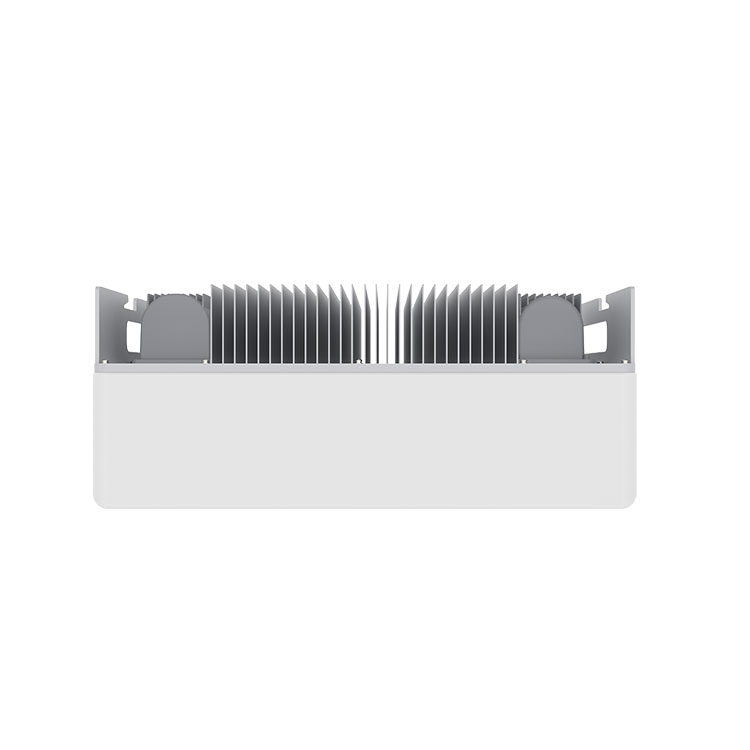

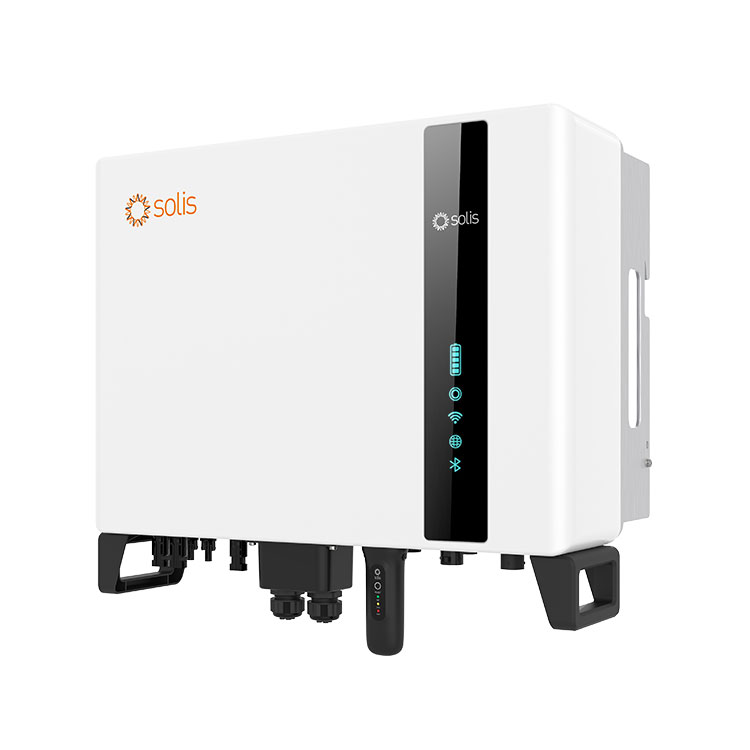

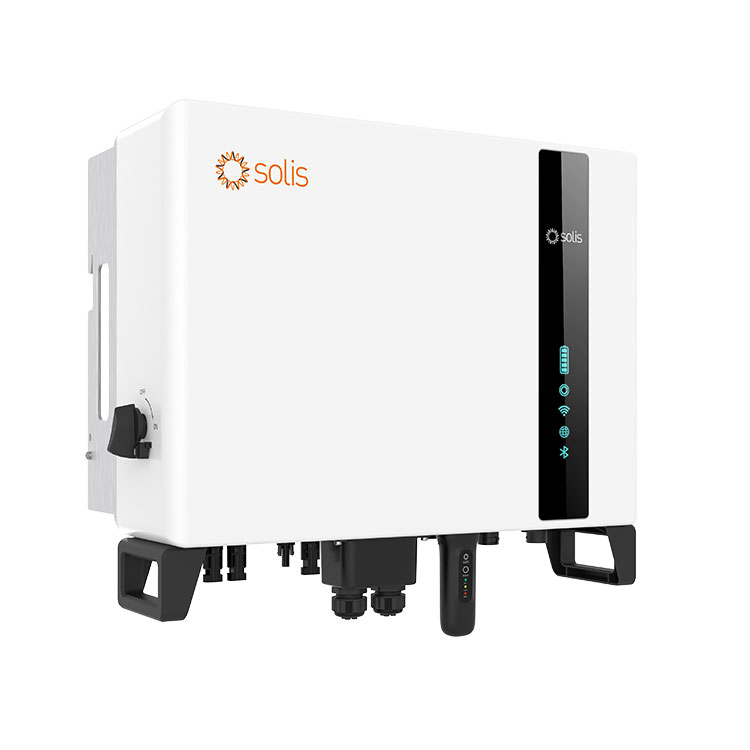

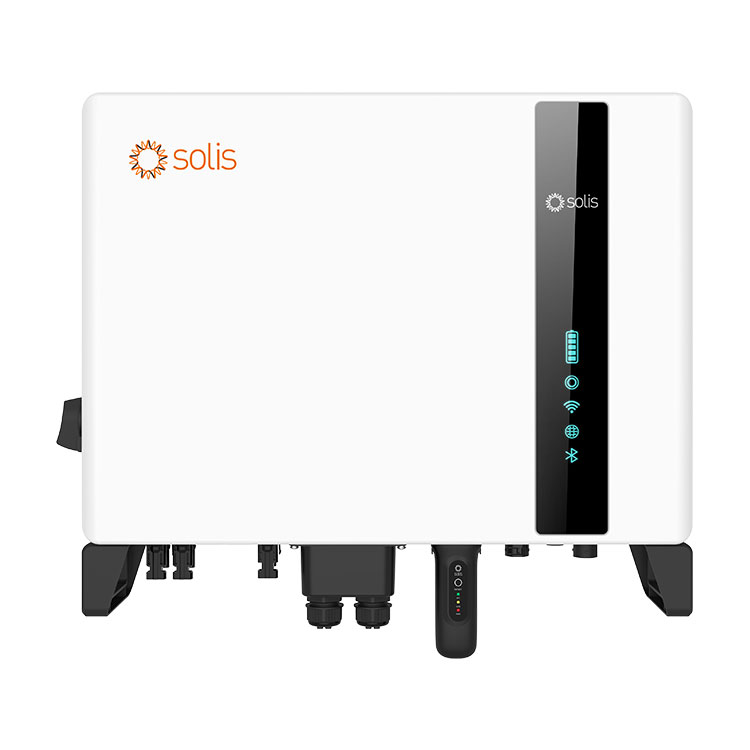

S6-EH3P5K2-H / S6-EH3P6K2-H
S6-EH3P8K2-H / S6-EH3P10K2-H
Models | 5K2 | 6K2 | 8K2 | 10K2 |
Input DC (PV side) | ||||
Recommended max PV array size | 10 kW | 12 kW | 16 kW | 20 kW |
Max. usable PV input power | 8 kW | 9.6 kW | 12.8 kW | 16 kW |
Max. input voltage | 1000 V | |||
Rated voltage | 600 V | |||
Start-up voltage | 160 V | |||
MPPT voltage range | 200-850 V | |||
Max. input current | 16 A / 16 A | |||
Max. short circuit current | 24 A / 24 A | |||
MPPT number/Max. input strings number | 2/2 | |||
Battery | ||||
Battery type | Li-ion | |||
Battery voltage range | 120-600 V | |||
Max. charge / discharge power | 5 kW | 6 kW | 8 kW | 10 kW |
Max. charge / discharge current | 25 A | 50 A | ||
Communication | CAN/RS485 | |||
Output AC (Grid side) | ||||
Rated output power | 5 kW | 6 kW | 8 kW | 10 kW |
Max. apparent output power | 5 kVA | 6 kVA | 8 kVA | 10 kVA |
Rated grid voltage | 3/N/PE, 380 V / 400 V | |||
Rated grid frequency | 50 Hz / 60 Hz | |||
Rated grid output current | 7.6 A / 7.2 A | 9.1 A / 8.7 A | 12.2 A / 11.5 A | 15.2 A / 14.4 A |
Max. output current | 7.6 A / 7.2 A | 9.1 A / 8.7 A | 12.2 A / 11.5 A | 15.2 A / 14.4 A |
Power factor | >0.99 (0.8 leading - 0.8 lagging) | |||
THDi | <3% | |||
Input AC (Grid side) | ||||
Max. input power | 7.5 kW | 9 kW | 12 kW | 15 kW |
Rated input current | 11.4 A | 13.8 A | 18.2 A | 22.8 A |
Rated input voltage | 3/N/PE, 380 V / 400 V | |||
Rated input frequency | 50 Hz / 60 Hz | |||
Output AC (Back-up) | ||||
Rated output power | 5 kW | 6 kW | 8 kW | 10 kW |
Max. apparent output power | 8 kVA, 60 sec | 9.6 kVA, 60 sec | 12.8 kVA, 60 sec | 16 kVA, 60 sec |
Back-up switch time | <10 ms | |||
Rated output voltage | 3/N/PE, 380 V / 400 V | |||
Rated frequency | 50 Hz / 60 Hz | |||
Rated output current | 7.6 A / 7.2 A | 9.1 A / 8.7 A | 12.2 A / 11.5 A | 15.2 A / 14.4 A |
THDv (@linear load) | <2% | |||
Efficiency | ||||
Max. efficiency | 96.5% | 97.0% | 97.5% | 97.9% |
EU efficiency | 96.8% | 97.1% | 97.4% | 97.5% |
BAT charged by PV Max. efficiency | 98.4% | 98.5% | 98.2% | 98.3% |
BAT charged/discharged to AC Max. efficiency | 97.3% | 97.3% | 97.5% | 97.5% |
Protection | ||||
Anti-islanding protection | Yes | |||
Output over current protection | Yes | |||
Short circuit protection | Yes | |||
Integrated AFCI (DC arc-fault circuit protection) | Yes (1) | |||
Integrated DC switch | Yes | |||
DC reverse-polarity protection | Yes | |||
PV over voltage protection | Yes | |||
Battery reverse protection | Yes | |||
General Data | ||||
Dimensions (W*H*D) | 600*500*210 mm | 600*500*230 mm | ||
Weight | 27.6 kg | 30.2 kg | ||
Topology | Transformerless | |||
Self-consumption (night) | <25 W | |||
Operating ambient temperature range | -25 ~ +60°C | |||
Relative humidity | 0-95% | |||
Ingress protection | IP66 | |||
Cooling concept | Natural convection | |||
Max. operation altitude | 4000 m | |||
Grid connection standard |
G98 or G99, VDE-AR-N 4105 / VDE V 0124, EN 50549-1, VDE 0126 / UTE C 15/VFR:2019, RD 1699/RD 244 / UNE 206006 / UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, TOR, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA |
|||
Safety/EMC standard | IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-3 | |||
Features | ||||

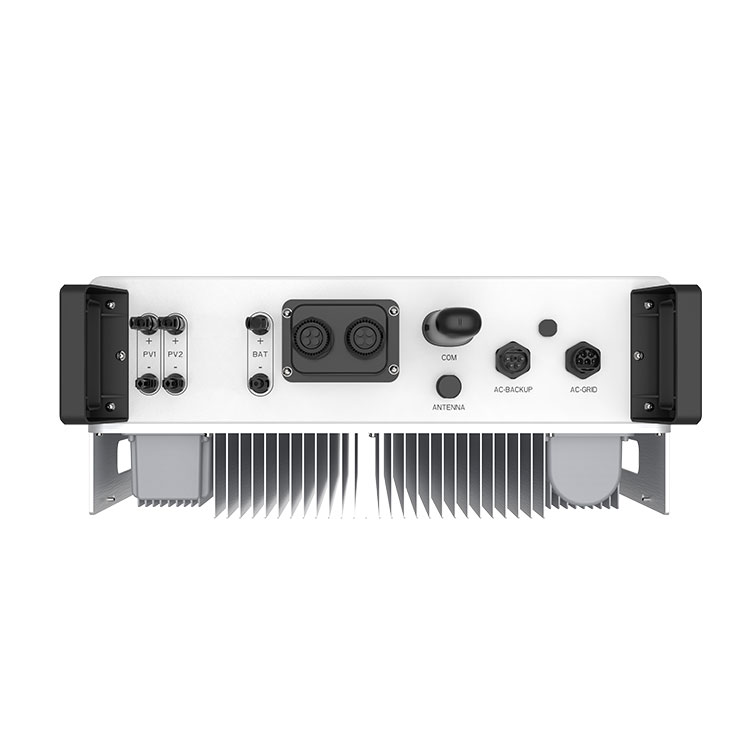

PV connection | MC4 connector | |||
Battery connection | Quick connection plug | |||
AC connection | Quick connection plug | |||
Display | LED + Bluetooth + APP | |||
Communication | CAN, RS485, Optional: Wi-Fi, Cellular, LAN |
