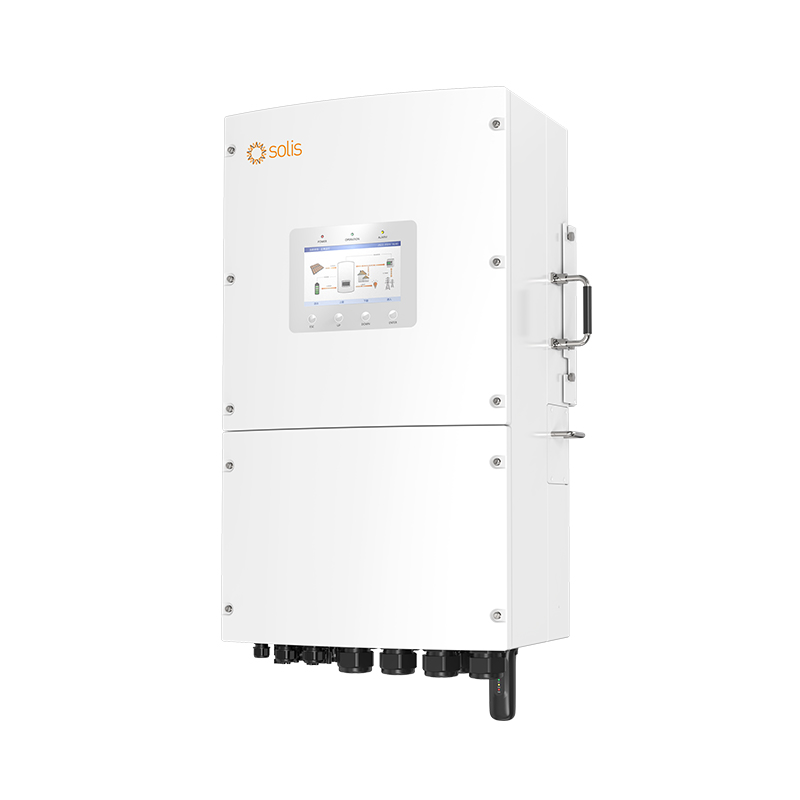

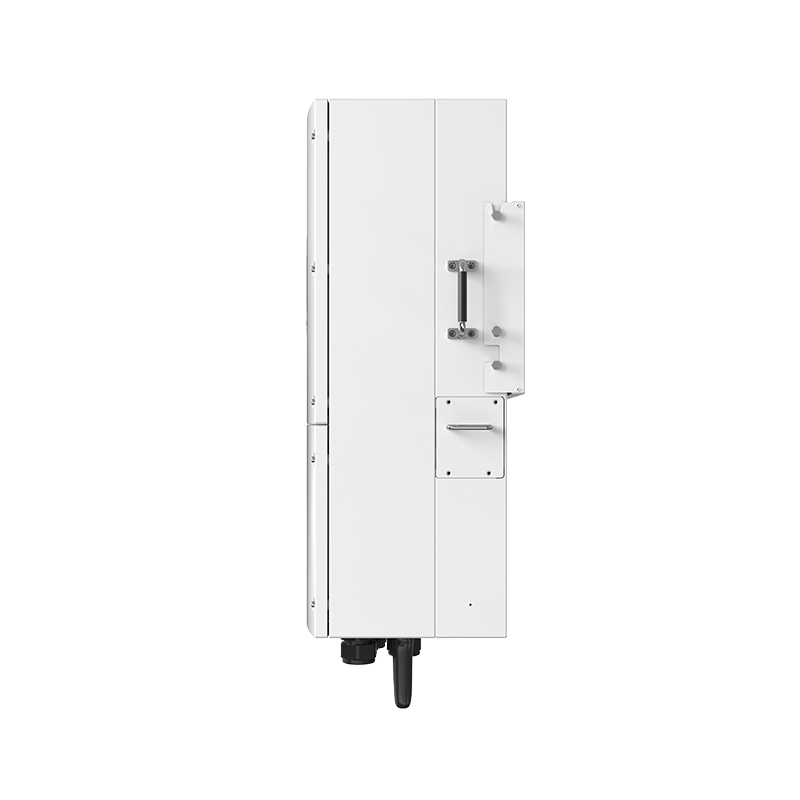

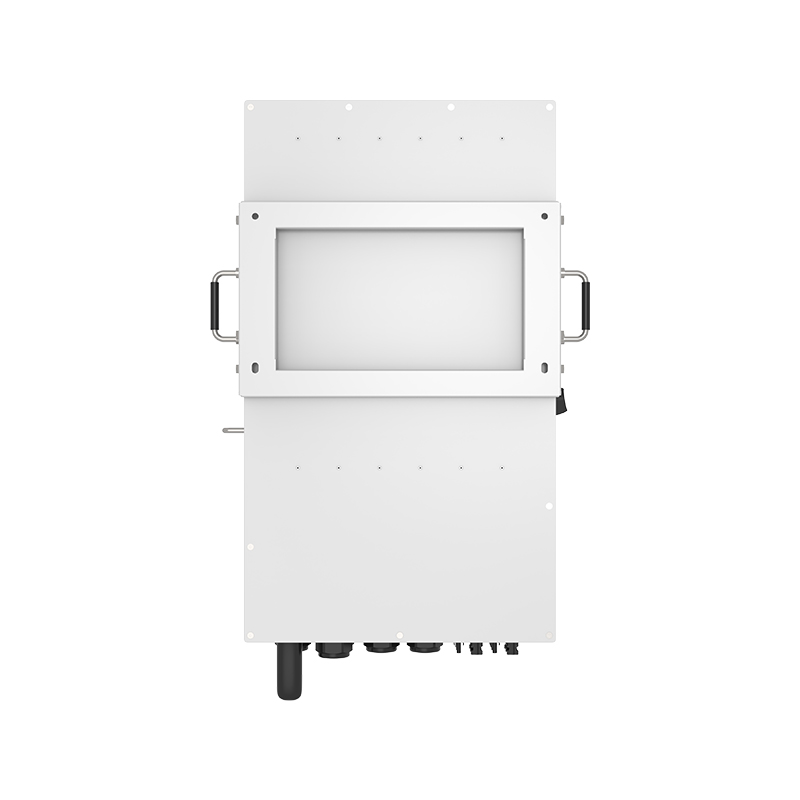

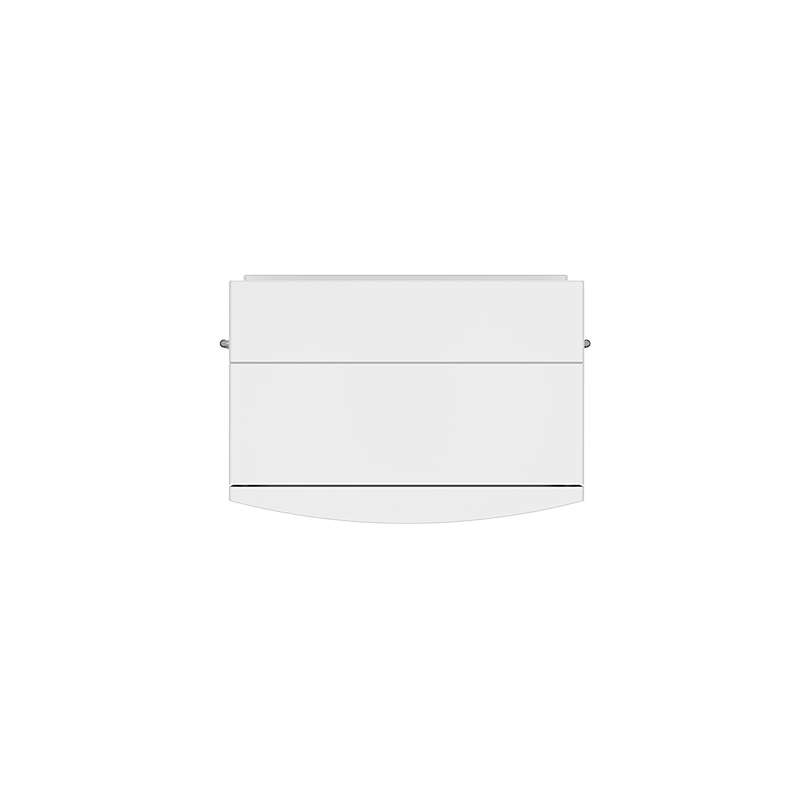

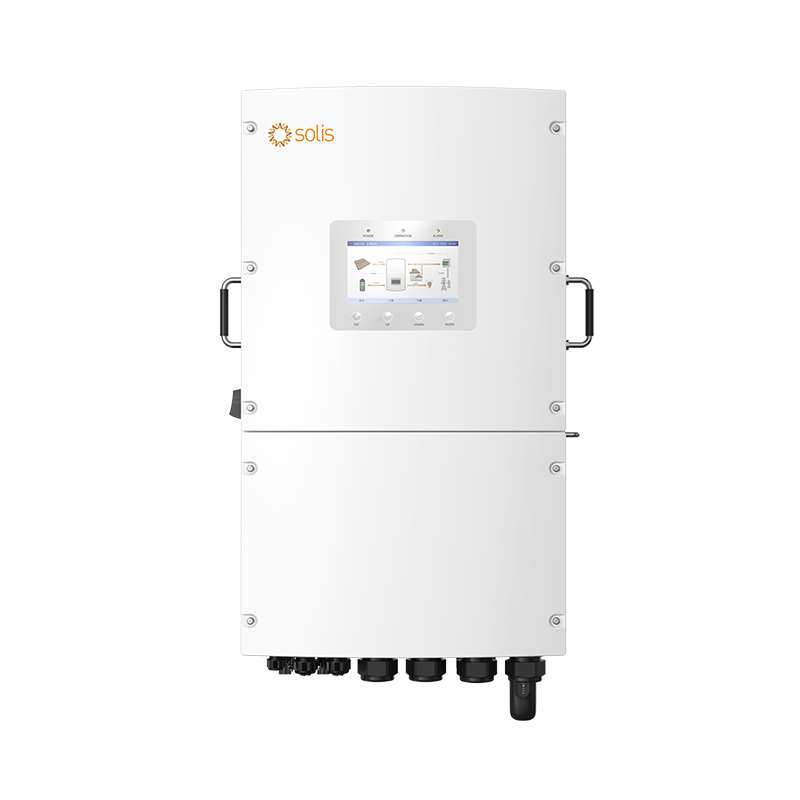

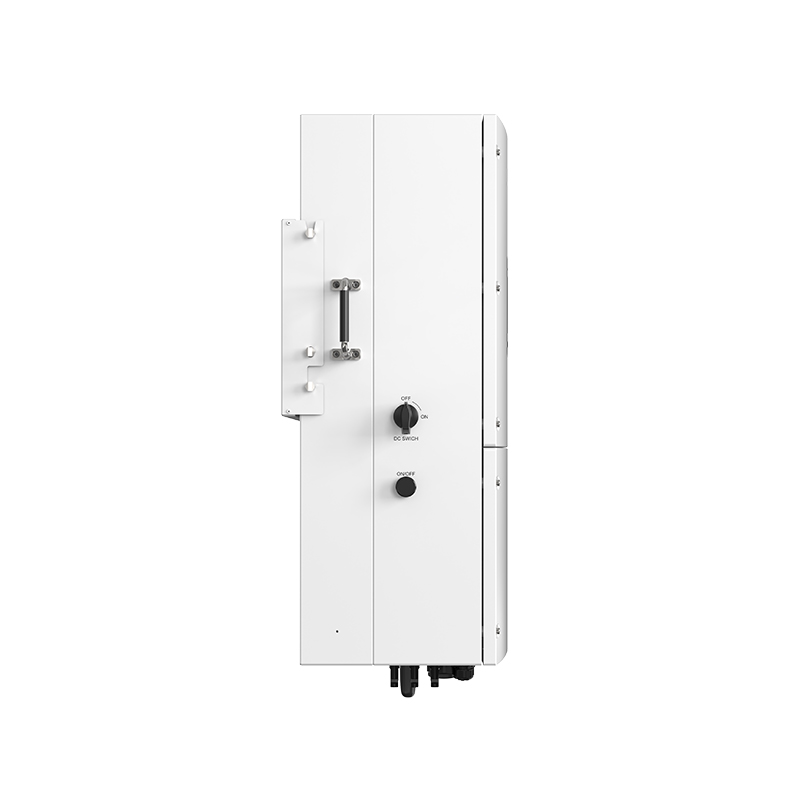

S6-EH1P(12-16)K-L-LD (with screen)
Detail
Features:
String current up to 20A, perfectly match large current modules
Built-in Backup Port with Automatic UPS switching
10 second 200% surge power backup overload capability
6 customisable charge/discharge time settings
Generator connectivity with multiple input methods and automatic generator On/Off control
Supports 1ph and 3ph flexible connection with max 96kW in parallel
Supports peak shaving control in both "self-use" and "generator" mode
Intelligent AC coupling scheme, easily upgrade existing grid-connected systems
Models:
S6-EH1P12K-L
S6-EH1P14K-L
S6-EH1P16K-L
DATASHEET
| Models | 12K | 14K | 16K |
| Input DC (PV side) | |||
| Recommended max. PV power | 16.8 kW | 19.6 kW | 22.4 kW |
| Max. input voltage | 550 V | ||
| Rated voltage | 380 V | ||
| Start-up voltage | 100 V | ||
| MPPT voltage range | 80-520 V | ||
| Max. input current | 40 A / 40 A / 40 A | ||
| Max. short circuit current | 50 A / 50 A / 50 A | ||
| MPPT number/Max. input strings number | 3/6 | ||
| Battery | |||
| Battery type | Li-ion / Lead-acid | ||
| Battery voltage range | 40 - 60 V | ||
| Max. charge / discharge power | 12 kW | 14 kW | 16 kW |
| Communication | CAN/RS485 | ||
| Output AC (Grid side) | |||
| Rated output power | 12 kW | 14 kW | 16 kW |
| Max. apparent output power | 12 kVA | 14 kVA | 16 kVA |
| Operation phase | L/N/PE | ||
| Rated grid voltage | 220 V / 230 V | ||
| Rated grid frequency | 50 Hz / 60 Hz | ||
| Rated grid output current | 54.5 A / 52.2 A | 63.6 A / 60.9 A | 72.7 A / 69.6 A |
| Max. output current | 54.5 A / 52.2 A | 63.6 A / 60.9 A | 72.7 A / 69.6 A |
| Power factor | 1.0 | ||
| THDi | <3% | ||
| Input AC (Grid side) | |||
| Input voltage range | 187-253 V | ||
| Max. input current | 110 A | ||
| Frequency range | 45-55 HZ/55-65 HZ | ||
| Output AC (Back-up) | |||
| Rated output power | 12 kW | 14 kW | 16 kW |
| Max. apparent output power | 2 times of rated power, 10 S | ||
| Back-up switch time | <4 ms | ||
| Rated output voltage | L/N/PE, 220 V / 230 V | ||
| Rated frequency | 50 Hz / 60 Hz | ||
| Rated output current | 54.5 A / 52.2 A | 63.6 A / 60.9 A | 72.7 A / 69.6 A |
| Max. output over current protection, 10 sec | 109 A | 127 A | 145 A |
| Max. Continuous AC Passthrough | 100 A | ||
| THDv (@linear load) | <3% | ||
| Max. number of parallel | 10 | ||
| Input Generator | |||
| Max. input power | 12 kW | 14 kW | 16 kW |
| Max. input current | 54.5 A | 63.6 A | 72.7 A |
| Rated input frequency | 50 Hz / 60 Hz | ||
| Efficiency | |||
| Max. efficiency | 97.6% | ||
| EU efficiency | 97.2% | ||
| BAT charged by PV Max. efficiency | > 94.9% | ||
| BAT charged/discharged to AC Max. efficiency | > 94.33%/93.51% | ||
| Protection | |||
| Surge protection | Yes | ||
| DC reverse-polarity protection | Yes (PV only) | ||
| Ground fault monitoring | Yes | ||
| Integrated AFCI (DC arc-fault circuit protection) | Yes (1) | ||
| Protection class/Over voltage category | I/II | ||
| General Data | |||
| Dimensions (W*H*D) | 464*763*282 mm | ||
| Weight | 48.5 kg | ||
| Topology | Transformerless | ||
| Operating ambient temperature range | -40 ~ +60°C | ||
| Ingress protection | IP66 | ||
| Cooling concept | Intelligent redundant fan-cooling | ||
| Max. operation altitude | 4000 m | ||
| Grid connection standard | NRS 097-2-1, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530 | ||
| Safety/EMC standard | IEC/EN 62109-1/-2, EN 61000-6-2/-3 | ||
| Features | |||

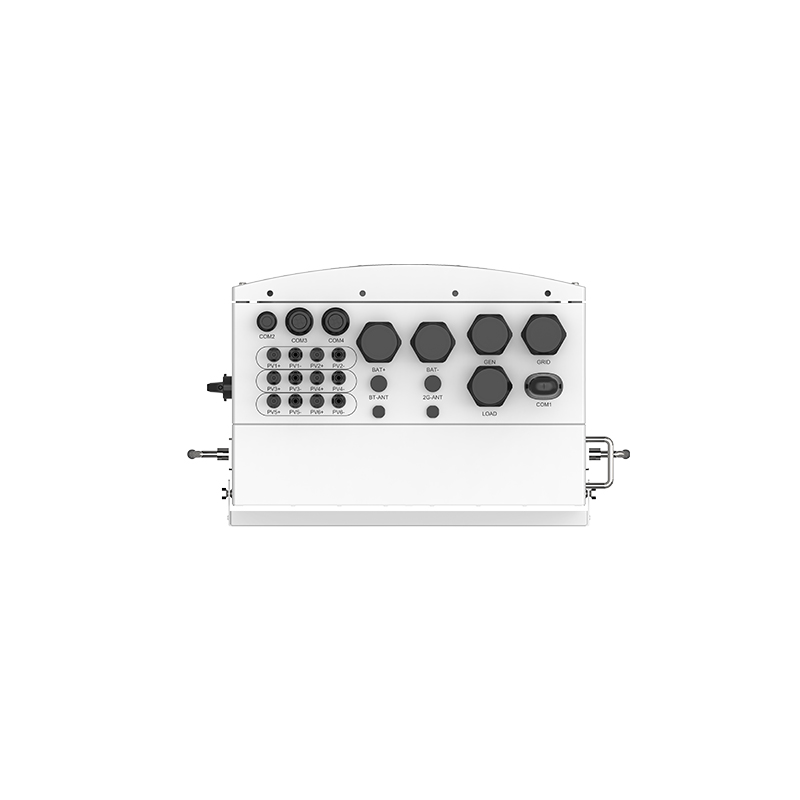

| DC connection | MC4 plug (PV port) / Terminal Block (BAT port) | ||
| AC connection | Terminal Block | ||
| Interface | LED indicator lights, Bluetooth/Phone app | ||
| Communication | RS485, Optional: Wi-Fi, LAN | ||
