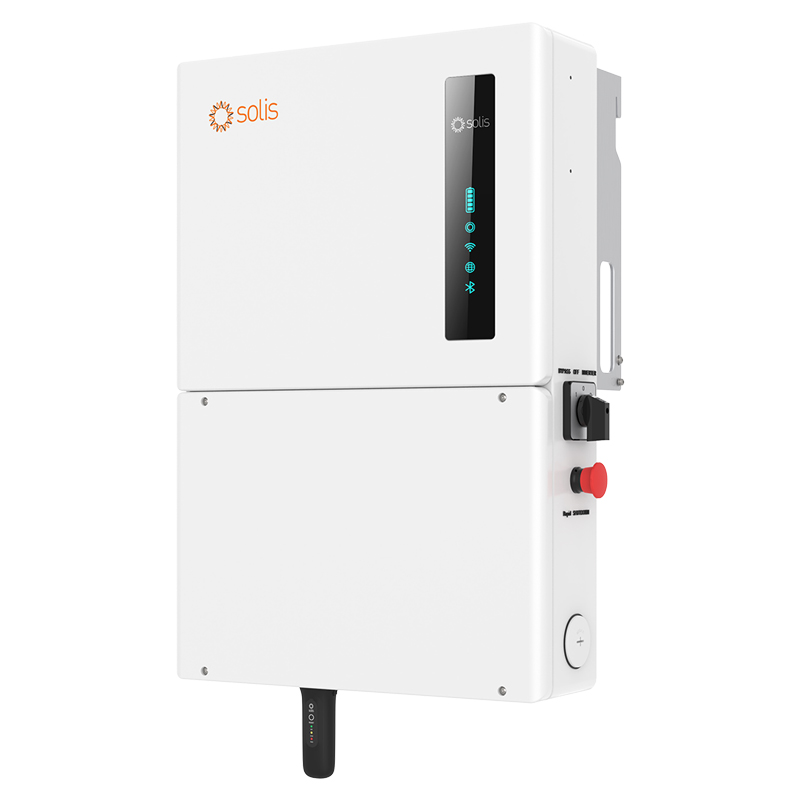

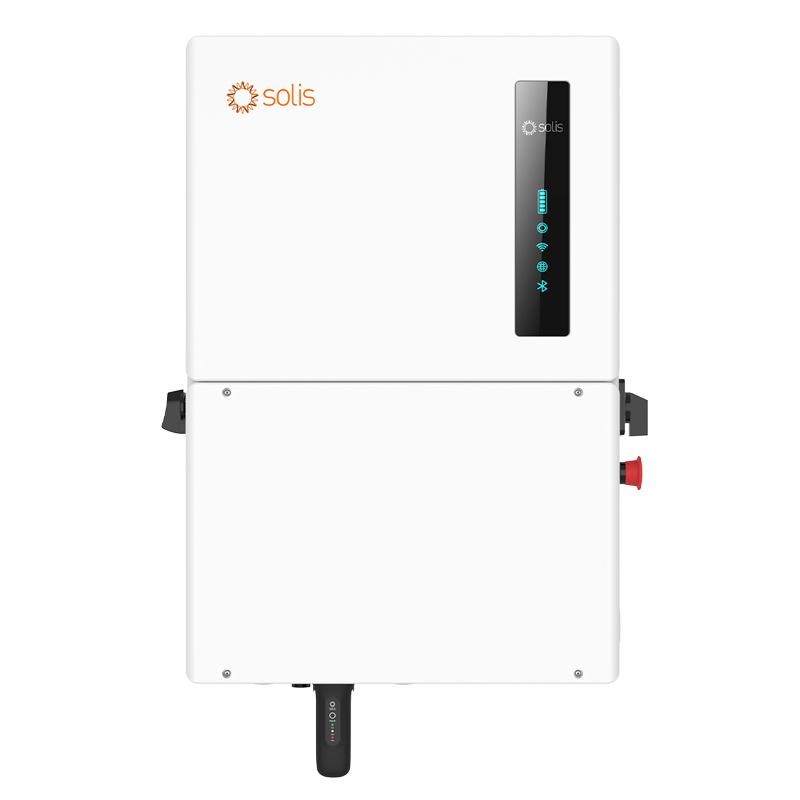

S6-EH1P(3.8-11.4)K-H-US
Detail
Features:
Up to 4 MPPTs and 16A of DC input current allows for PV array design flexibility
Optimization, module-level monitoring, and rapid shutdown options available

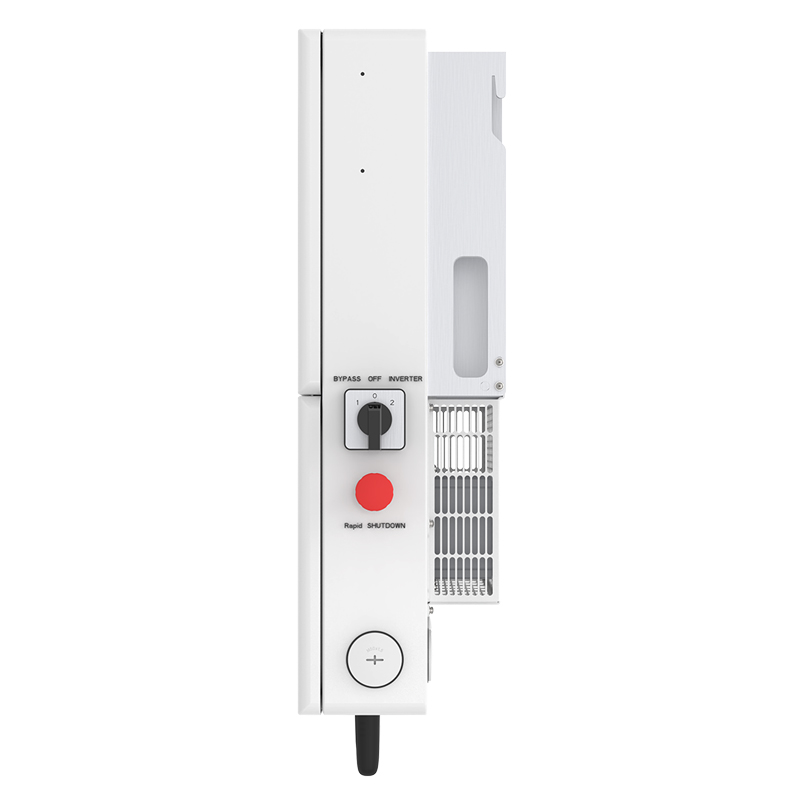

External RSD, EPO signal and BYPASS switch are available
UL 9540 certified with multiple different battery brands (LG, BYD, Pylontech. ect)
Bluetooth connection to mobile phone, make the setting and operation easier
Automatic UPS switching and up to 170% (130A) 300ms surge power back up overload
capacity support industral air conditioner
Intelligent AC coupling scheme, easily upgrade existing grid-connected systems
Whole-home backup, generator integration, and load shading function with the new SolisHub
Supports 1ph and 3ph flexible connection on both the Grid and Backup Port
Models:
S6-EH1P3.8K-H-US / S6-EH1P5K-H-US
S6-EH1P7.6K-H-US / S6-EH1P9.9K-H-US
S6-EH1P10K-H-US / S6-EH1P11.4K-H-US
Please consult the Ordering Guide for details on how
to order the inverter with different accessories.
DATASHEET
| Models | 3.8K | 5K | 7.6K | 9.9K | 10K | 11.4K |
| DC Input (PV) | ||||||
| Max. input voltage | 600 V | |||||
| Rated voltage | 380 V | |||||
| Start-up voltage | 80 V | |||||
| MPPT voltage range | 80-520 V | |||||
| Max. input current per string | 16 A | |||||
| Max. short circuit current per string | 25.6 A | |||||
| Number of MPPTs/Number of strings per MPPT | 2/1 | 3/1 | 4/1 | |||
| Energy Storage | ||||||
| Battery type | Lithium-ion | |||||
| Battery voltage range | 120-500 V | |||||
| Maximum charge/discharge current | 25 A | 50 A | ||||
| Battery communication | CAN/RS485 | |||||
| Number of batteries per inverter | See Battery Compatibility Sheet | |||||
| AC Output (Grid) | ||||||
| Rated output power | 3.8 kW | 5 kW | 7.6 kW | 9990 W | 10 kW | 11.4 kW |
| Max. apparent output power | 3.8 kVA | 5 kVA | 7.6 kVA | 9990 VA | 10 kVA | 11.4 kVA |
| Rated output voltage | 240 V | |||||
| Rated frequency | 60 Hz | |||||
| Rated output current | 15.8 A | 20.8 A | 31.7 A | 41.7 A | 41.7 A | 47.5 A |
| Max. output current | 15.8 A | 20.8 A | 31.7 A | 41.7 A | 41.7 A | 47.5 A |
| THDi | <3% | |||||
| AC Input (Grid) | ||||||
| Input voltage range | 211-264 V | |||||
| Max. input current | 23.8 A | 31.2 A | 47.6 A | 62.6 A | 62.6 A | 71.3 A |
| Frequency range | 58.8-61.2 Hz | |||||
| AC Output (Backup and Off-grid) | ||||||
| Rated output power | 3.8 kW | 5 kW | 7.6 kW | 9990 W | 10 kW | 11.4 kW |
| Max. apparent output power | 6.1 kVA, 10 sec | 8 kVA, 10 sec | 12.2 kVA, 10 sec | 16 kVA, 10 sec | 16 kVA, 10 sec | 18.2 kVA, 10 sec |
| Back-up switch time | <10 ms | |||||
| Phase Power | 240 V Split-Phase | |||||
| Rated output voltage (L1-L2) | 240 V | |||||
| AC output voltage range | 211-264 V | |||||
| Rated grid frequency | 60 Hz | |||||
| Frequency range | 55-65 Hz | |||||
| Rated AC output current | 15.8 A | 20.8 A | 31.7 A | 41.7 A | 41.7 A | 47.5 A |
| Max. output overcurrent protection, 10 sec | 25.4 A | 33.3 A | 50.7 A | 66.7 A | 66.7 A | 76 A |
| Max. allowable phase imbalance | 100% | |||||
| Backup support configurations | Whole-home and dedicated loads | |||||
| Power factor | >0.99 (0.8 leading - 0.8 lagging) | |||||
| THDv (@linear load) | <3% | |||||
| Efficiency | ||||||
| PV Max. efficiency | 97.0% | 97.6% | ||||
| PV CEC efficiency | 96.5% | 97.0% | ||||
| Battery charged by PV Max. efficiency | 98.5% | |||||
| Battery charged/discharged to AC Max. efficiency | 97.0% | |||||
| Protection | ||||||
| Ground fault detection | Yes | |||||
| Residual (leakage) current detection | Yes | |||||
| Integrated AFCI (DC arc-fault circuit protection) | Yes | |||||
| DC reverse-polarity protection | Yes (PV only) | |||||
| Manual inverter bypass switch | Yes | |||||
| Rapid Shutdown NEC 2017 | Integrated SunSpec-certified Transmitter | |||||
| Compatible RSD Receivers | See MLRSD Compatibility Sheet | |||||
| Protection class/Over voltage category | I/II | |||||
| General Data | ||||||
| Dimensions (W*H*D) | 19.21*28.35*8.66 in (490*720*220 mm) | 22.05*29.53*8.66 in (560*750*220 mm) | ||||
| Weight | 52.43 lbs lbs (23.78 kgs) | 71.74 lbs (32.54 kgs) | ||||
| Topology | Transformerless | |||||
| Self-consumption (night) | < 20 W | |||||
| Operation temperature range | -13 °F to 140 °F (-25°C to 60°C) | |||||
| Ingress protection | TYPE 4X | |||||

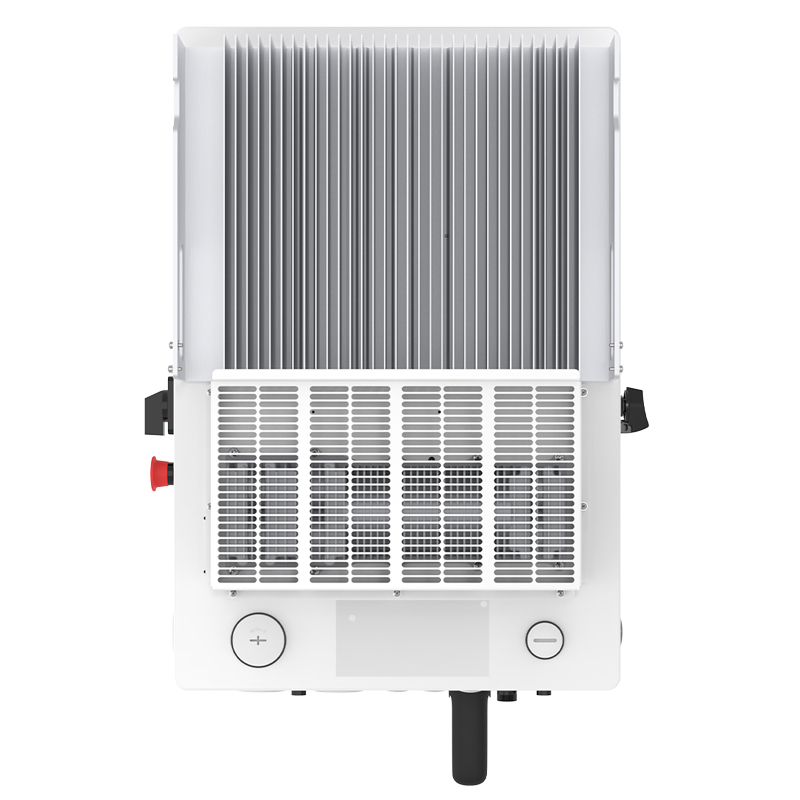

| Cooling method | Natural convection | |||||
| Mounting type | Wall Bracket | |||||
| Max. operation altitude | 13,120 ft (4000 m) | |||||
| Compliance | UL 1741, UL 1741 SA, UL 1741 SB, IEEE1547-2018&2020, UL 1699B, UL 1998, California Rule 21, NEC 690.12-2020, CAN/CSA C22.2107.1-1, FCC Part 15 Class B | |||||
| Generator support | Yes; up to 25 kW (with a Solis Hub) | |||||
| Features | ||||||

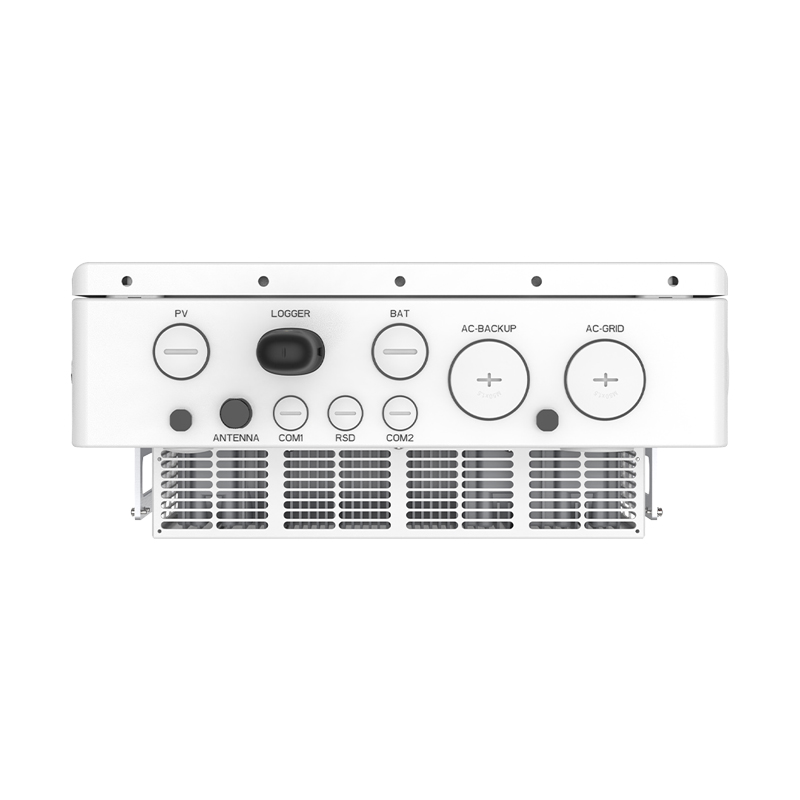

| DC connection | 1 in. knockouts for conduit (x2) on the side and bottom; Spring clamp terminals | |||||
| AC connection | 1.5 in. knockouts for conduit (x3) on the side and bottom; Spring clamp terminals | |||||
| Interface | LED indicator lights, Bluetooth/Mobile application | |||||
| Monitoring platform | SolisCloud (modbus map and API sharing available upon request) | |||||
| Revenue Grade Meter | Integrated ANSI C12.20 option | |||||
| Communication | RS485, Cellular, Wi-Fi, Optional: LAN | |||||
| Integrated RSD Transmitter Brands | See the MLRSD Compatibility Sheet | |||||
