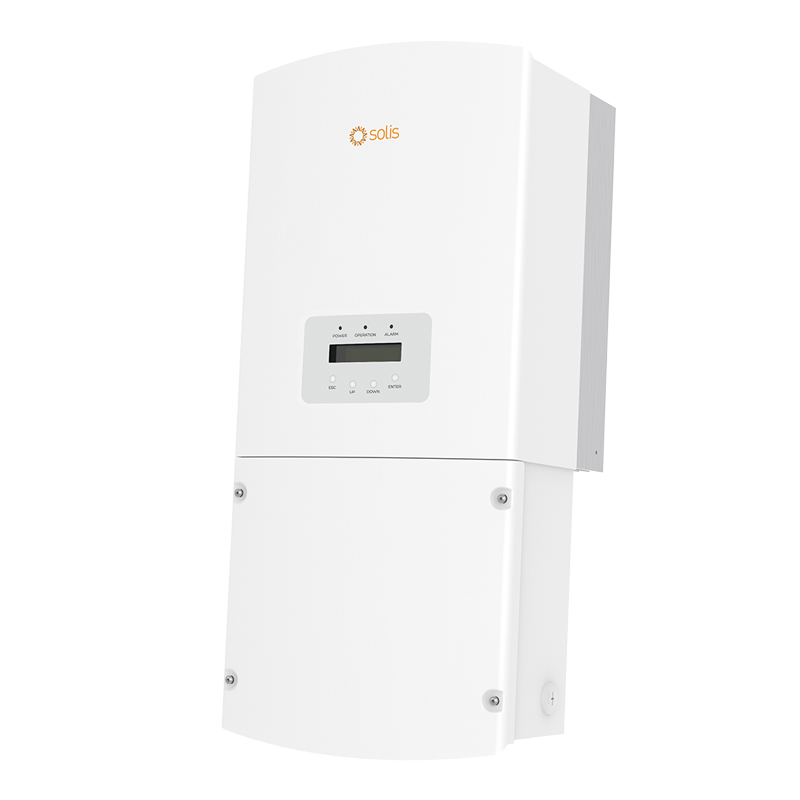

Solis-1P(6-10)K-4G-US
Detail
Features:
Max. efficiency 97.8% (CEC efficiency 97.5%)
String current up to 14A
CA Rule 21 compliant and UL 1741 SB Certified
Sunspec protocol with option cellular and WiFi
Integrated module level rapid shutdown transmitter
Support module level monitoring
Optional Built-in Revenue Grade Meter, ANSI C12.20-2010 compliance
Industry-leading 3 and 4 MPPT designs
AFCI protection, proactively reduces fire risk
10 years standard warranty with extension options
Models:
Solis-1P6K-4G-US / Solis-1P7.6K-4G-US
Solis-1P10K-4G-US
Ordering: Solis-1P(6-10)K-4G-US-PLUS
APST (APS MLRSD Transmitter)
RSS (Tigo MLRSD Transmitter)
NEPT (NEP MLRSD Transmitter)
CCA (Tigo CCA)
DATASHEET
| Models | 6K | 7.6K | 10K |
| Input DC | |||
| Max. input voltage | 600 V | ||
| Rated voltage | 330 V | ||
| Start-up voltage | 120 V | ||
| MPPT voltage range | 100 - 500 V | ||
| Max. input current | 14 A / 14 A / 14 A | 14 A / 14 A / 14 A / 14 A | |
| Max. short circuit current | 22 A / 22 A / 22 A | 22 A / 22 A / 22 A / 22 A | |
| MPPT number/Max. input strings number | 3/3 | 4/4 | |
| Output AC | |||
| Rated output power | 6 kW | 7.6 kW | 10 kW |
| Max. apparent output power | 6 kVA | 7.6 kVA | 10 kVA |
| Max. output power | 6 kW | 7.6 kW | 10 kW |
| Rated grid voltage | 1Ф/PE, 240 V / 208 V | ||
| Rated grid frequency | 60 Hz | ||
| Max. output current for 240 V grid | 25 A | 31.7 A | 41.7 A |
| Max. output current for 208 V grid | 28.8 A | 36.5 A | 43.3 A |
| Power factor | >0.99 (0.8 leading - 0.8 lagging) | ||
| THDi | <3% | ||
| Efficiency | |||
| Max. efficiency | 97.8% | ||
| CEC efficiency | 97.5% | ||
| Protection | |||
| DC reverse-polarity protection | Yes | ||
| Ground fault monitoring | Yes | ||
| Anti-islanding protection | Yes | ||
| Integrated AFCI (DC arc-fault circuit protection) | Yes | ||
| Integrated DC switch | Yes | ||
| Rapid shutdown | Built-In APS or Tigo Transmitter | ||
| Surge Protection | DC Type III / AC Type III | ||
| Compliant MLRSD Products | TS4-A-F/2F, APSmart RSD-S / RSD-D | ||
| General Data | |||

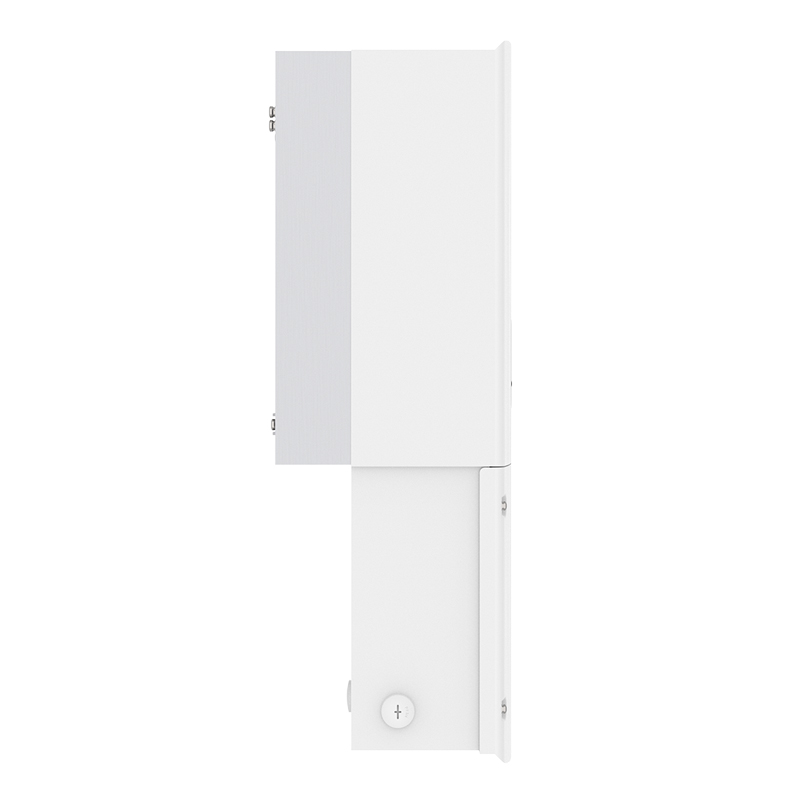

| Dimensions (W*H*D) | 13.1*28.8*9.8 in (333*732*249 mm) | ||
| Weight | 45.2 lbs (20.5 kgs) | 45.6 lbs (20.7 kgs) | |
| Topology | Transformerless | ||
| Self-consumption (night) | <1 W | ||
| Relative humidity | 0-100% | ||
| Operating ambient temperature range | -13°F to 140°F (-25°C to 60°C) | ||
| Storage environment | -13°F to 176°F (-25°C to 80°C) | ||
| Ingress protection | TYPE 4X | ||

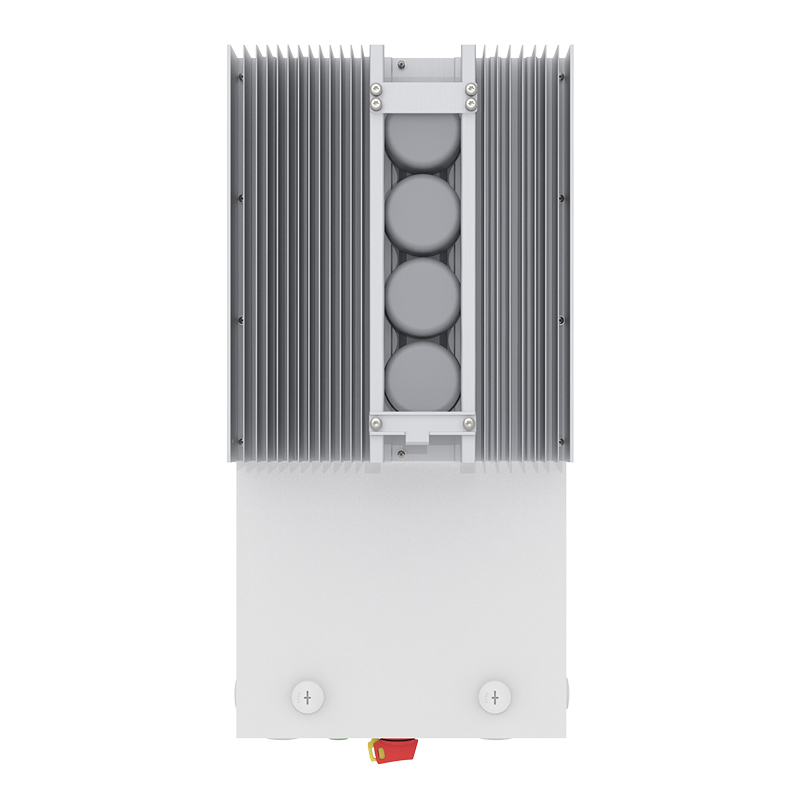

| Cooling concept | Natural convection | ||
| Max. operation altitude | 13,120 ft (4000 m) | ||
| Compliance | UL1741SB, UL1741SA, IEEE 1547-2018, UL1699B, UL1998, FCC Part15 ClassB, California Rule 21, Heco Rule 14H, NEC 690.12-2020, CAN/CSA C22.2107.1-1 | ||
| Features | |||

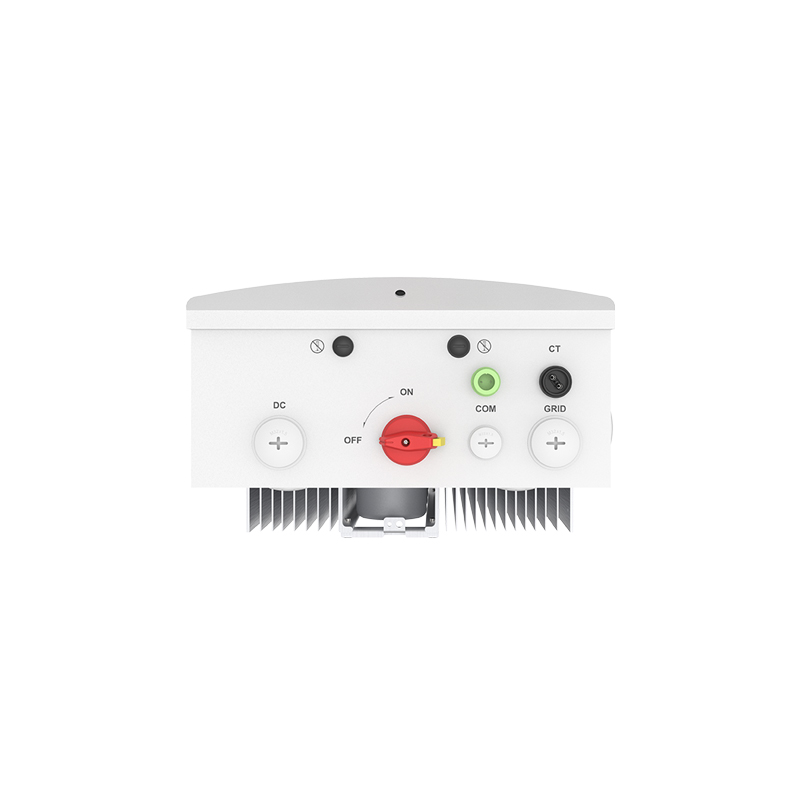

| DC connection | 2 knockout for 1"conduit at bottom, 4 knockout for 3/4"conduit at side and back, Screw clamp terminal | ||
| AC connection | 2 knockout for 1"conduit at bottom, 4 knockout for 3/4"conduit at side and back, OT terminal | ||

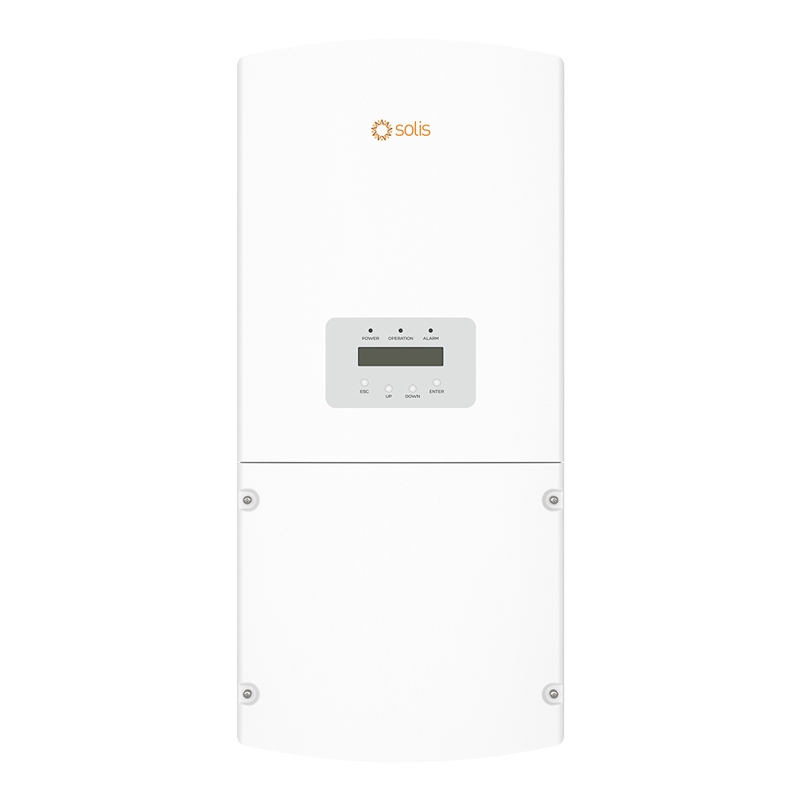

| Display | LCD | ||
| Communication | RS485, Optional: Cellular, Wi-Fi | ||
