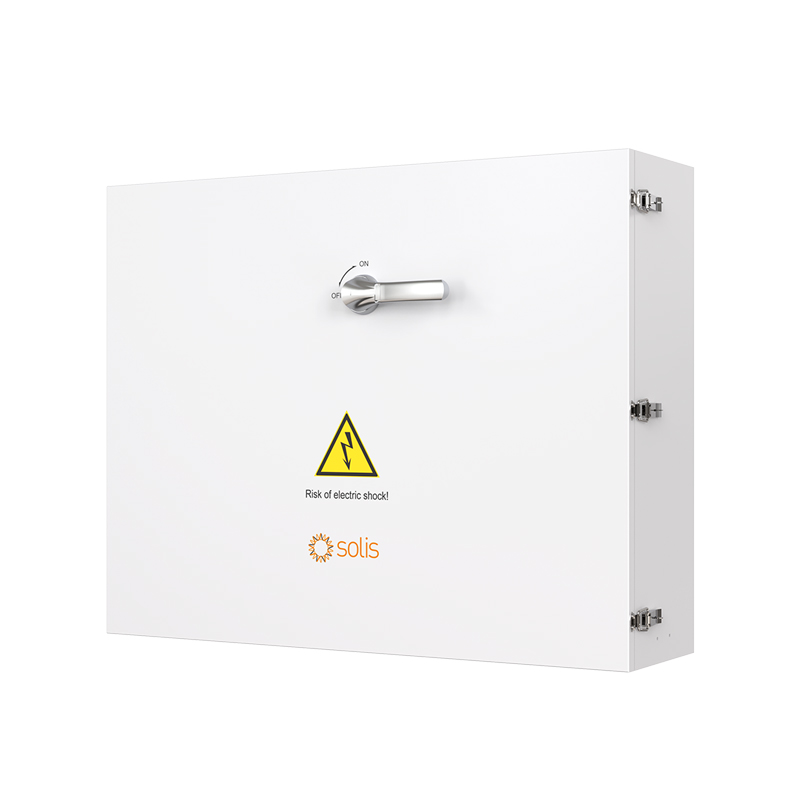

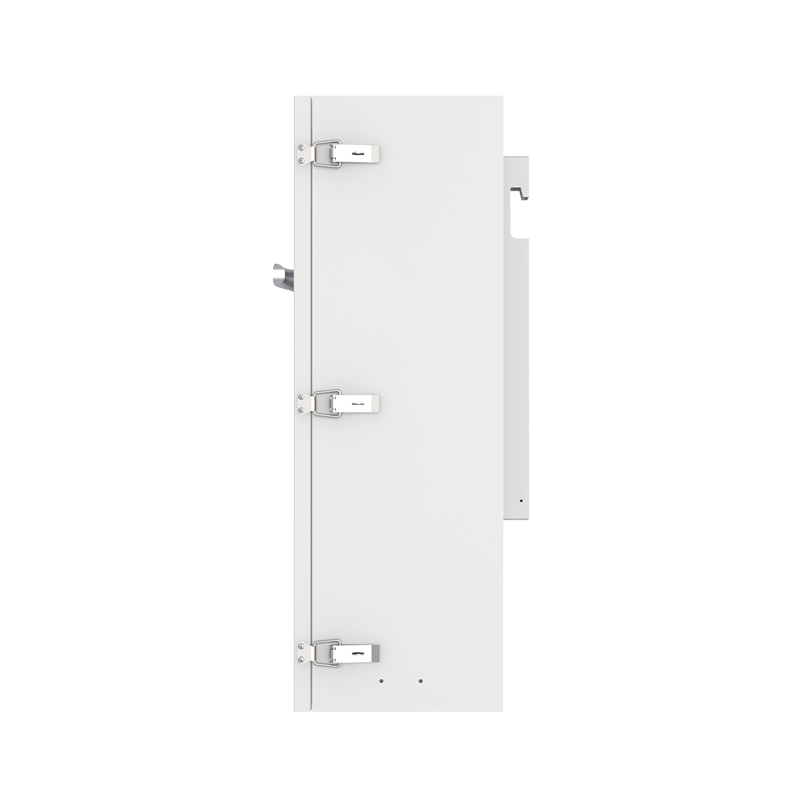

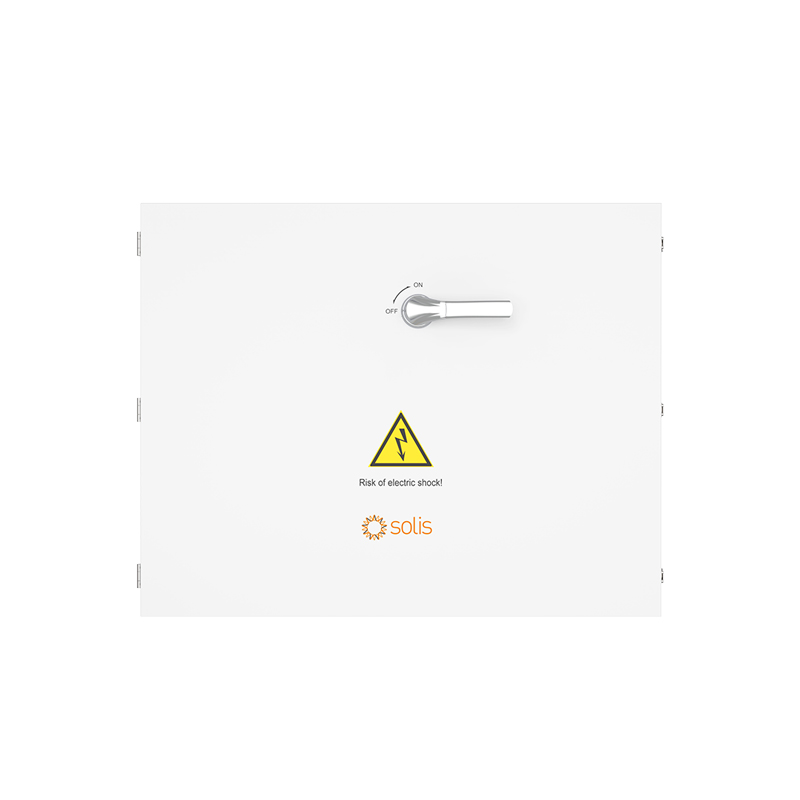

Detail

Features:

Strong safety, high economy, standard overcurrent protection

Protection class NEMA Type 3R, which meets the requirements

of outdoor installation

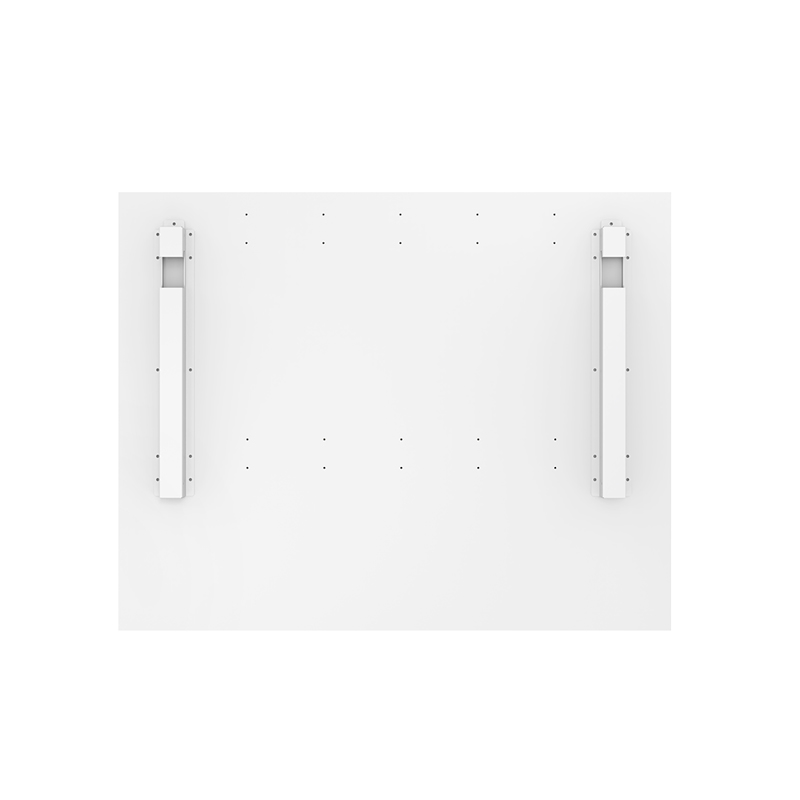

Small size, light weight, attached installation, reduce

engineering construction costs

Easy connection, simple operation


Models:

Solis-AC Combiner-800V/1000A

Solis-AC Combiner-800V/800A

Solis-AC Combiner-800V/630A


DATASHEET

Models 800V/1000A 800V/800A 800V/630A
Input
Number of AC input circuits 3, 4 3 2
OCPD Fuse
Rated input voltage 800 V
Rated input current 3*251 A, 4*185 A 3*185 A 2*251 A
Input conductor size 3*(300-750kcmil CU/AL)

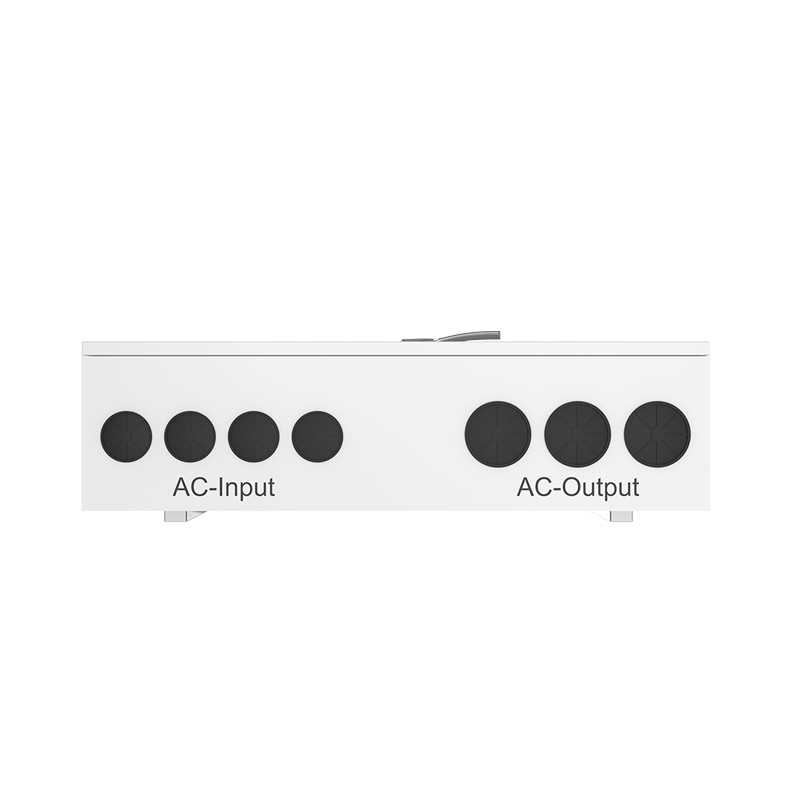

Input conduit knockout size Removable bottom plate
Output
Rated output current 753 A 555 A 502 A
Output conductor size 3*(2*600-1000kcmil CU/AL)
Output conduit knockout size Removable bottom plate
Short circuit interrupt capacity 65 kA
Output fuse rating 1000 A 800 A 630 A
Mechanical
Dimensions (W*H*D) 48.2*37*15 in (1225*940*380 mm)
Weight 154.3 lbs (70 kgs)
Equipment grounding Yes
Padlockable enclosure (LOTO) Yes
Breather vent Yes
Grounding busbar No
Environment
Degree of protection NEMA Type 3R
Operating ambient temperature range -22°F to 140°F / -30°C to +60°C (derating from +104°F / +40°C)
Relative humidity 0-100%
Max. operation altitude 9842 ft / 3000 m (no derating); 13,120 ft / 4000 m (max)
Safety
Compliance UL1741
