Solis Wi-Fi & Cellular Data Logger S1-WL-ST
A data monitoring device that plugs externally into the bottom of the inverter. The logger relays information from the inverter to the Solis monitoring platform, SolisCloud. It can connect to a local router through Wi-Fi or to a 4G cellular network. If the Wi-Fi network goes down, the logger automatically switches to using the cellular network to limit the loss of data. There are two versions of the logger, USB for S6 hybrid inverter models and 4-pin for all other Solis inverter models.
Detail
Features:
Provides detailed system information for remote troubleshooting
Comes with both Wi-Fi and 4G cellular communication options
Automatically switches over to cellular when the Wi-Fi fails
Relays system fault alarms to the Solis monitoring portal

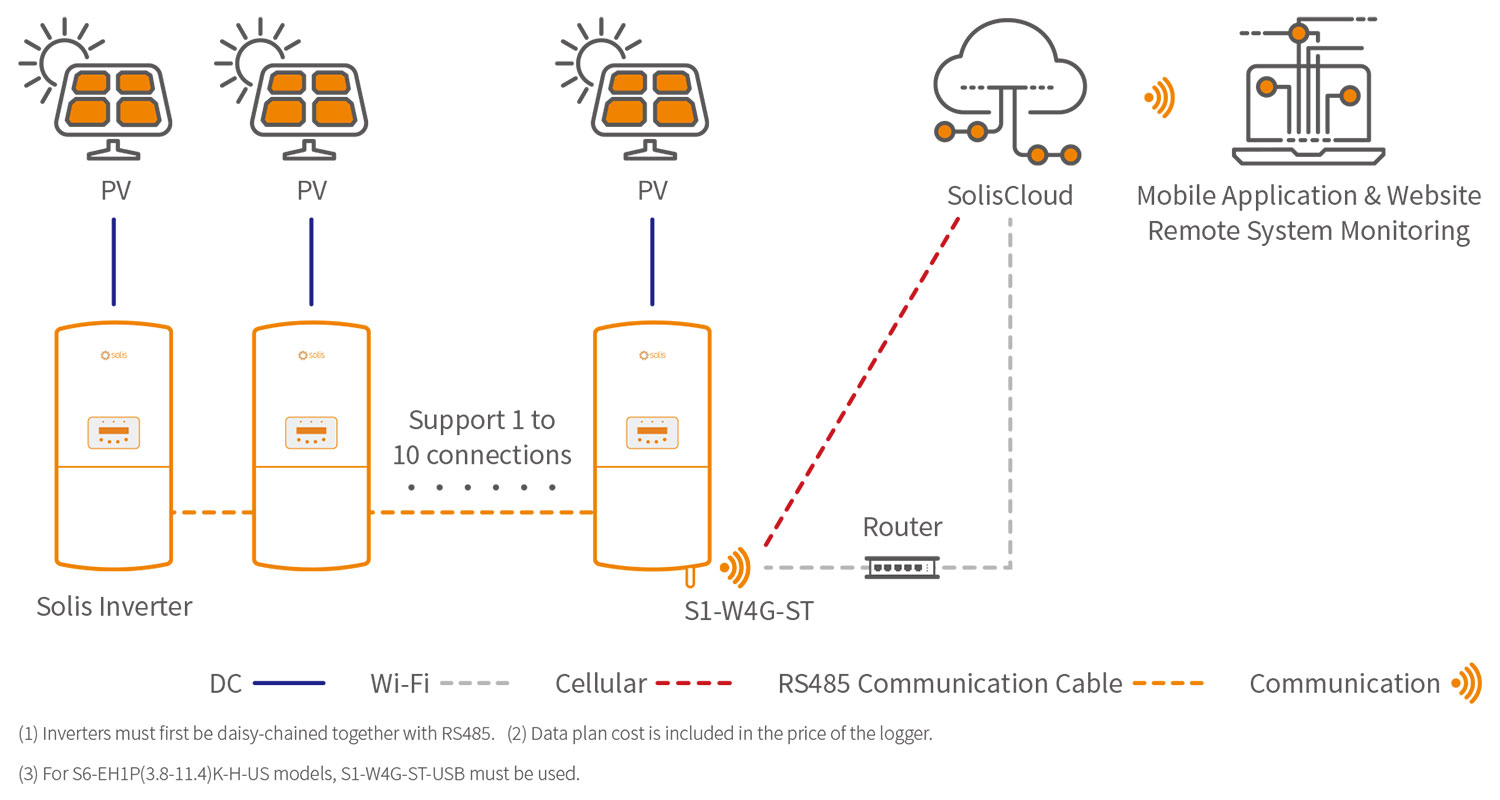

Supports up to ten (10) inverters per logger (1)
5-year and 10-year data plan options (2)
Works with all Solis inverter models (3)
Allows for remote firmware updates
Quick, easy, and safe to install
LED status indicator lights
2-year warranty included
NEMA 4X outdoor rated
Intelligent Monitoring Solution - S1-W4G-ST
DATASHEET

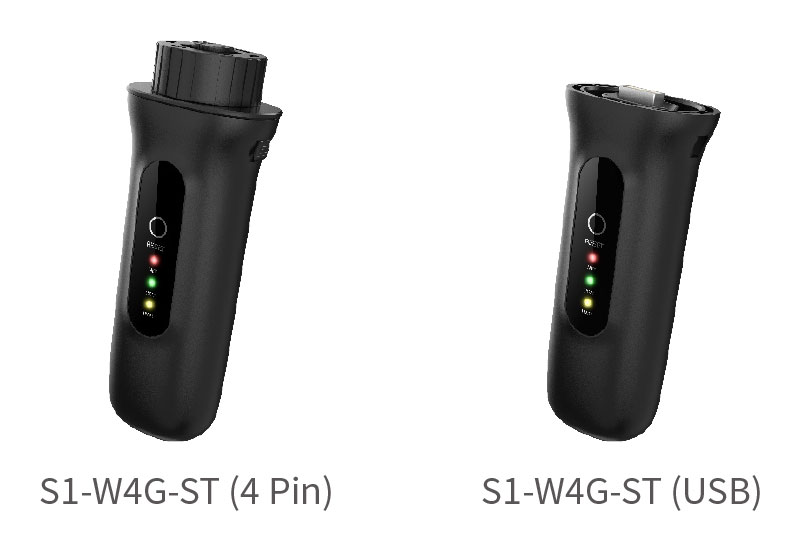

| Models | S1-W4G-ST (4 Pin) | S1-W4G-ST (USB) |
| Communication | ||
| Supported device type | All Solis models except for S6-EH1P (3.8-11.4)K-H-US models | Only S6-EH1P(3.8-11.4)K-H-US models |
| Number of connected inverters (1) | ≤10 | |
| Data collection intervals | 5 minutes | |
| Status indicator | × 3 LED Indicator Lights | |
| Inverter connection interface | External 4-Pin Port | External USB Port |
| Network communication options |
2.4 GHz Wi-Fi networks (2) Verizon, AT&T, T-Mobile, Rogers, & Telus 4G cellular networks (included SIM card) (3) |
|
| Configuration method | Mobile Application and Website | |
| Electrical | ||
| Operating voltage | DC 5 V (+/-5%) | |
| Operating power consumption | ≤5 W | |
| Environment | ||
| Operating ambient temperature range | -22°F to 149°F (-30 ~ +65°C) | |
| Operating humidity | 5%-95%, Relative humidity, non-condensing | |
| Storage temperature | -40°F to 158°F (-40 ~ +70°C) | |
| Storage humidity | < 40% | |
| Operating altitude | ≤ 13,123 ft. (4,000 m) | |
| Protection degree | NEMA 4X | |
| Mechanical | ||
| Dimensions (L*W*H) | 5*2*1.3 in (128*50*34 mm) | 4.5*2*1.3 in (115*50*34 mm) |
| Installation method | Externally Insert + Twist Lock | Externally Insert + Tab Lock |
| Weight | 0.17 lb (79 g) | 0.14 lb (65 g) |
| Others | ||
| Certification | CE, FCC | |
| Warranty | 2-year Standard | |
