Solis Wi-Fi&LAN Data Logger S2-WL-ST

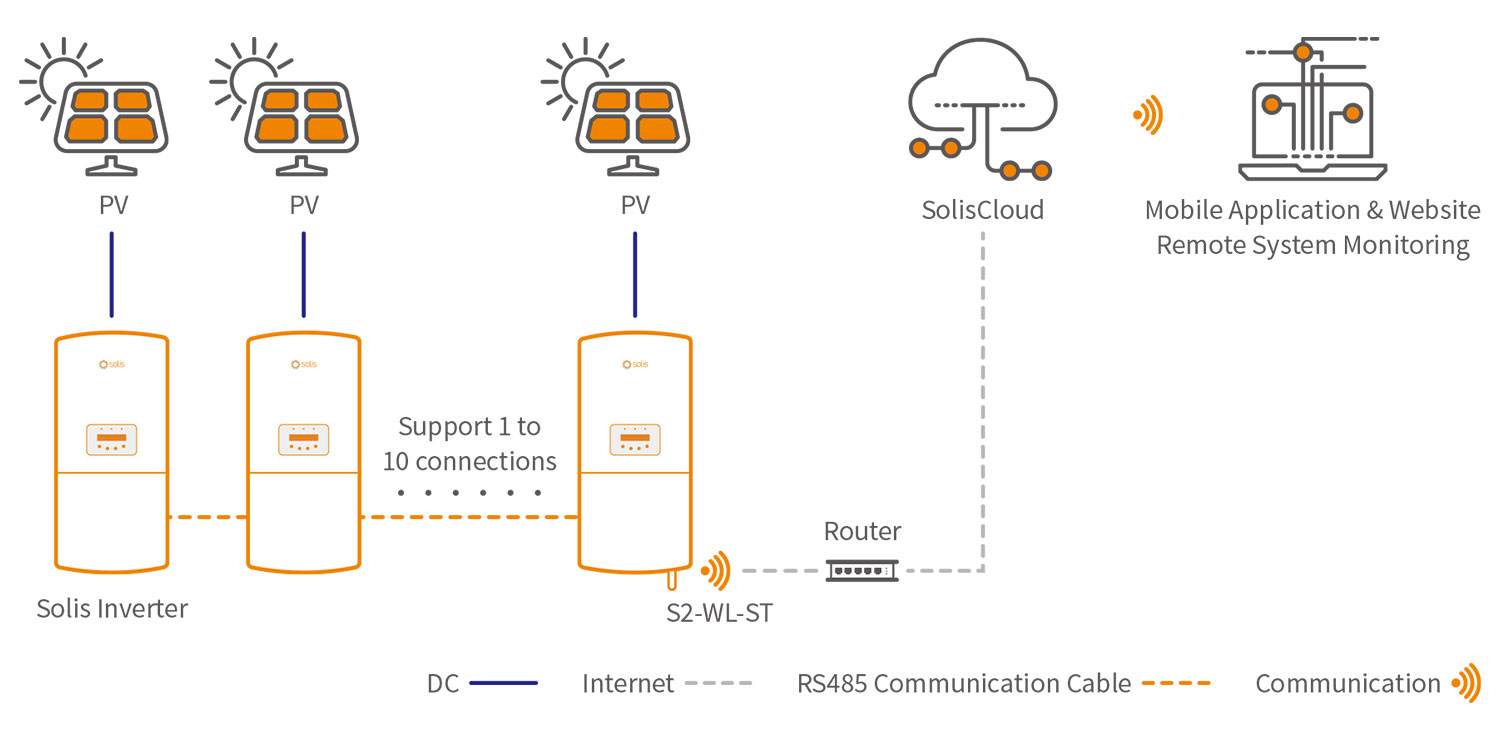

Up to 10 inverters can be connected to 1 data logger. The logger connects with the local router through Wi-Fi or LAN and transmits data to SolisCloud. SolisCloud, the Solis monitoring platform, allows for remote system monitoring and control. The data is clear and detailed, making it easy to monitor and troubleshoot from anywhere anytime.
Detail
Features:
Supports WiFi and LAN communication
Simple plug-and play installation makes commissioning quick and easy
Sends alarm notifications through text and email
Intuitive LED indicator lights displays the operating status
One button for instant data transmission and device configuration
Support Bluetooth nearby connection and debugging
One-key assignment of inverter address, efficient and labor-saving
Intelligent Monitoring Solution - S2-WL-ST
DATASHEET

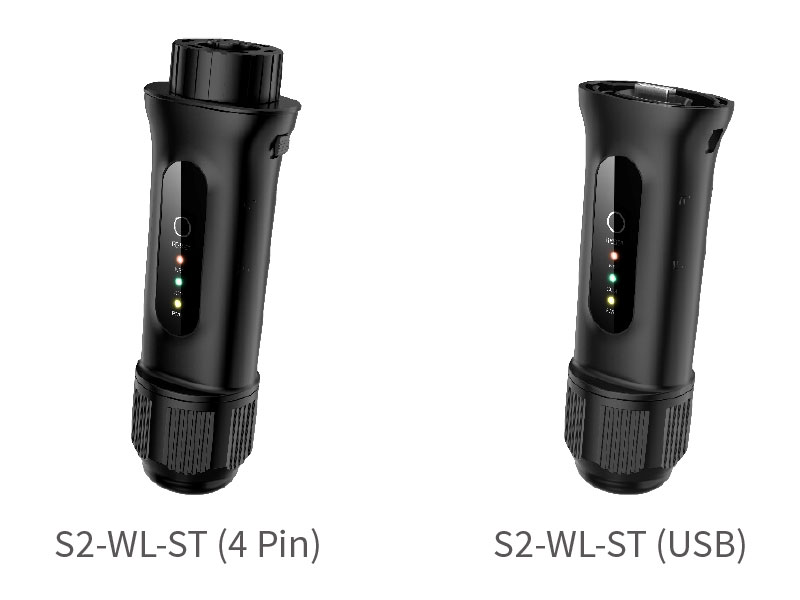

| Models | S2-WL-ST (4 Pin) | S2-WL-ST (USB) |
| Communication | ||
| Supported device type | All Solis models except for Solis S6 inverter | Solis S6 inverter |
| Number of connected inverters (1) | ≤10 | |
| Data collection intervals | 5 minutes | |
| Status indicator | × 3 LED Indicator Lights | |
| Inverter connection interface | External 4-Pin Port | External USB Port |
| Network communication options | 2.4 GHz Wi-Fi networks (2) | |
| Configuration method | Mobile Application and Website | |
| Electrical | ||
| Operating voltage | DC 5 V (+/-5%) | |
| Operating power consumption | ≤5 W | |
| Environment | ||
| Operating ambient temperature range | -22°F to 149°F (-30 ~ +65°C) | |
| Operating humidity | 5%-95%, Relative humidity, non-condensing | |
| Storage temperature | -40°F to 158°F (-40 ~ +70°C) | |
| Storage humidity | < 40% | |
| Operating altitude | ≤ 13,123 ft. (4,000 m) | |
| Protection degree | NEMA 4X | |
| Mechanical | ||
| Dimensions (L*W*H) | 4.9*1.3*1.9 in (125*34*49 mm) | 4.4*1.3*1.9 in (112*34*49 mm) |
| Installation method | Externally Insert + Twist Lock | Externally Insert + Tab Lock |
| Weight | 0.23 lb (103 g) | 0.2 lb (89 g) |
| Others | ||
| Certification | CE, FCC | |
| Warranty | 2-year Standard | |
