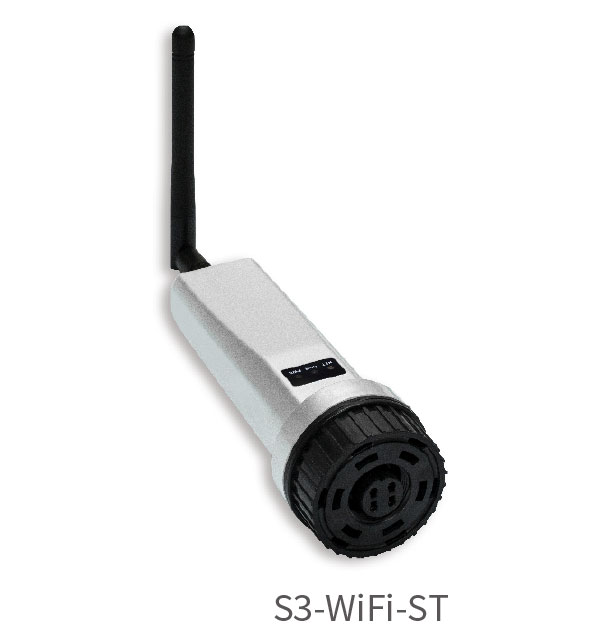

Solis Wi-Fi Data Logger S3-WiFi-ST

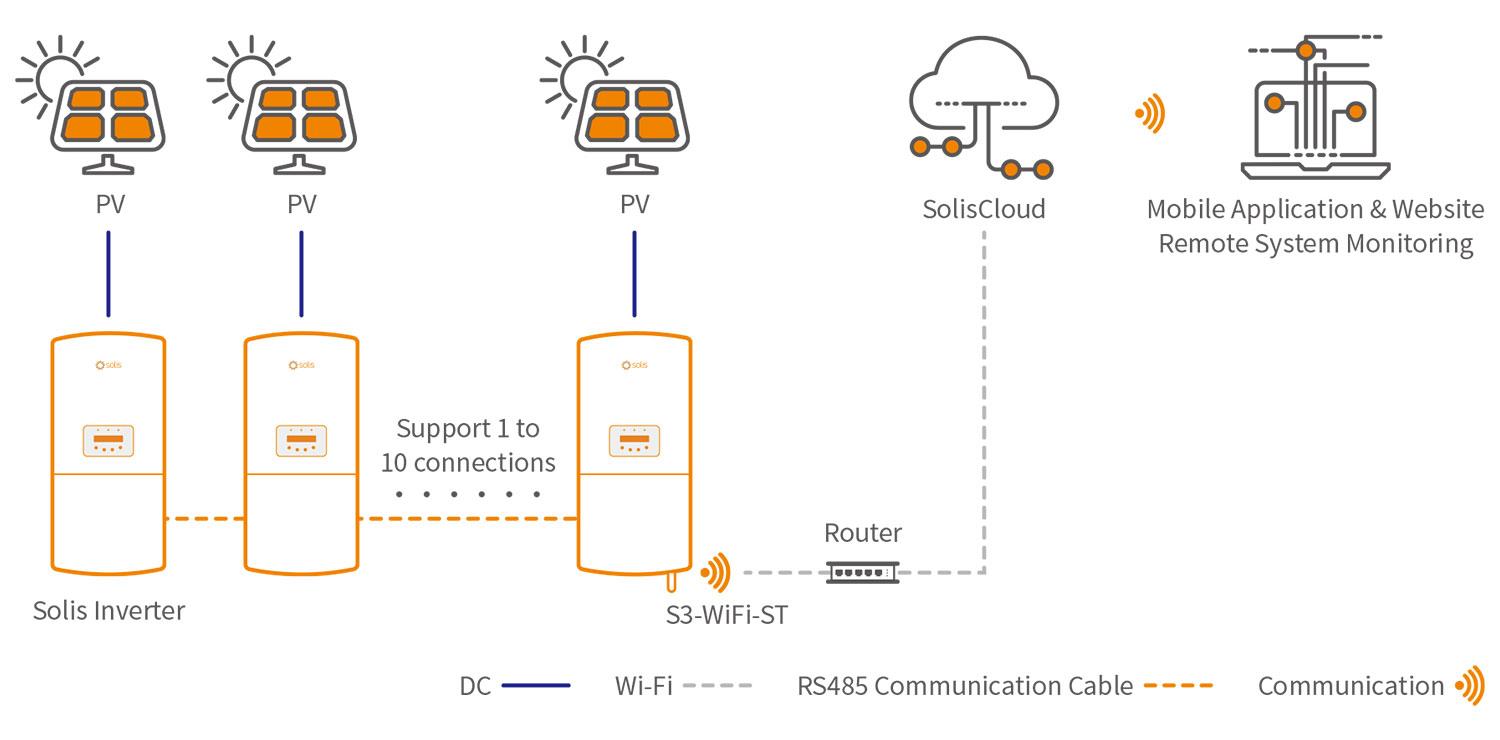

Up to 10 inverters can be connected to 1 data logger. The logger connects with the local Wi-Fi network and transmits data wirelessly to SolisCloud. SolisCloud, the Solis monitoring platform, allows for remote system monitoring and control. The data is clear and detailed, making it easy to monitor and troubleshoot from anywhere anytime.
Detail
Features:
Sends alarm notifications through text and email
Intuitive LED indicator lights displays the operating status
Simple plug-and play installation makes commissioning quick and easy
One button for instant data transmission and device configuration
Intelligent Monitoring Solution - S3-WiFi-ST
DATASHEET
| Models | S3-WiFi-ST |
| Communication | |
| Supported device type | All Solis models except for Solis S6 inverter |
| Number of connected inverters (1) | ≤10 |
| Data collection intervals | 5 minutes |
| Status indicator | × 3 LED Indicator Lights |
| Inverter connection interface | External 4-Pin Port |
| Network communication options | 2.4 GHz Wi-Fi networks (2) |
| Configuration method | Mobile Application and Website |
| Electrical | |
| Operating voltage | DC 5V(+/-5%) |
| Operating power consumption | ≤5 W |
| Environment | |
| Operating ambient temperature range | -22°F to 149°F (-30 ~ +65°C) |
| Operating humidity | 5%-95%, Relative humidity, non-condensing |
| Storage temperature | -40°F to 158°F (-40 ~ +70°C) |
| Storage humidity | < 40% |
| Operating altitude | ≤ 13,123 ft. (4,000 m) |
| Protection degree | NEMA 4X |
| Mechanical | |
| Dimensions (L*W*H) | 5*2*1.3 in (128*50*34 mm) |
| Installation method | Externally Insert + Twist Lock |
| Weight | 0.18 lb (80 g) |
| Others | |
| Certification | CE, FCC |
| Warranty | 2-year Standard |
