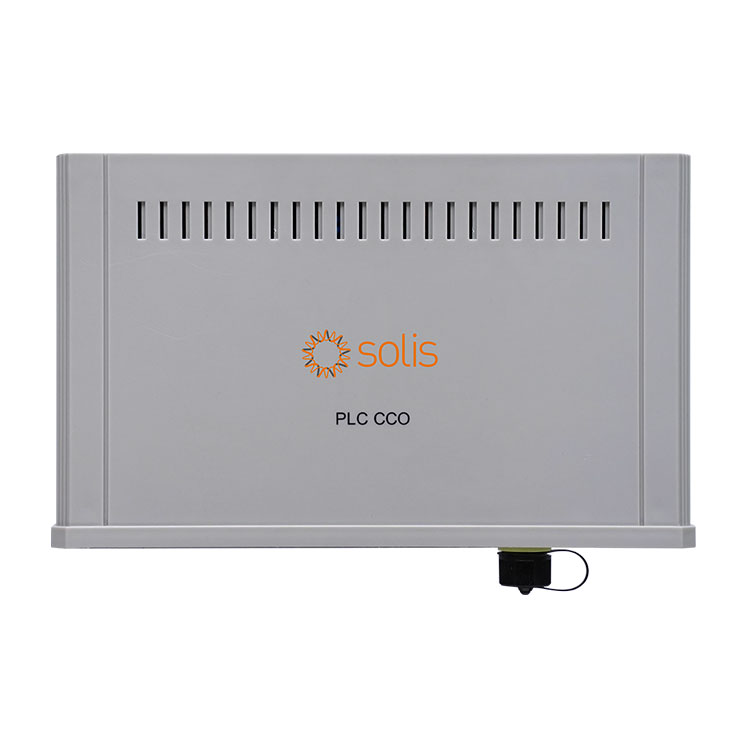

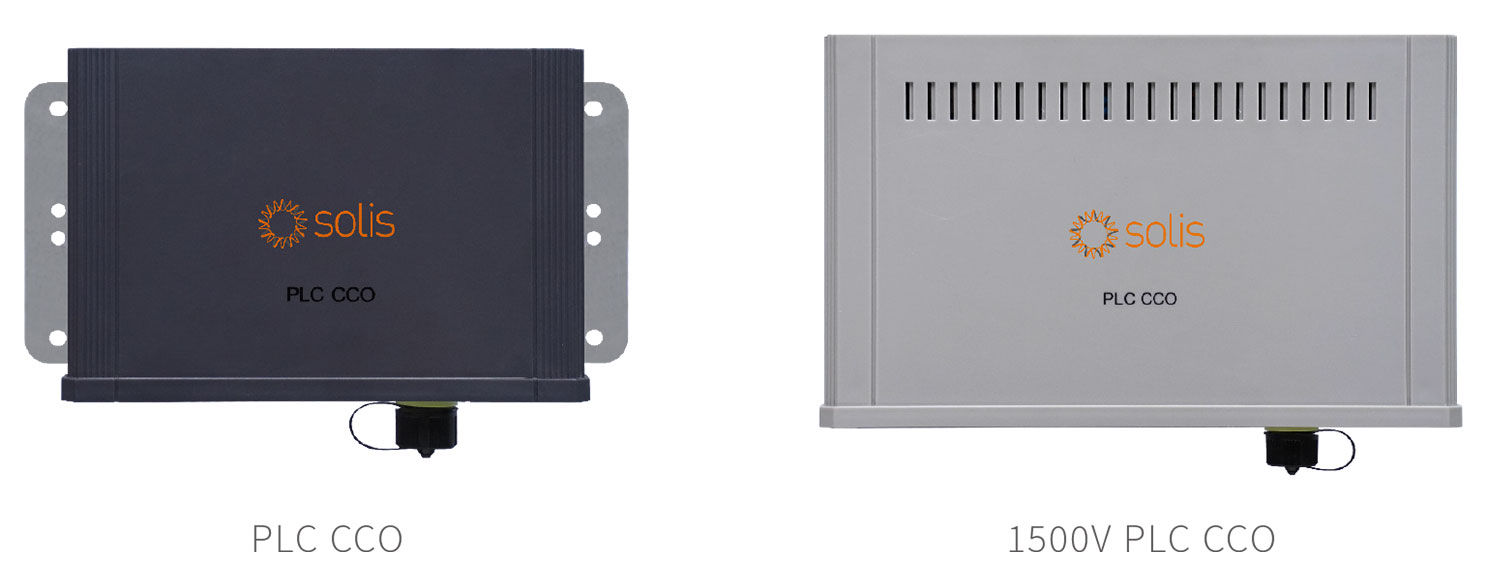

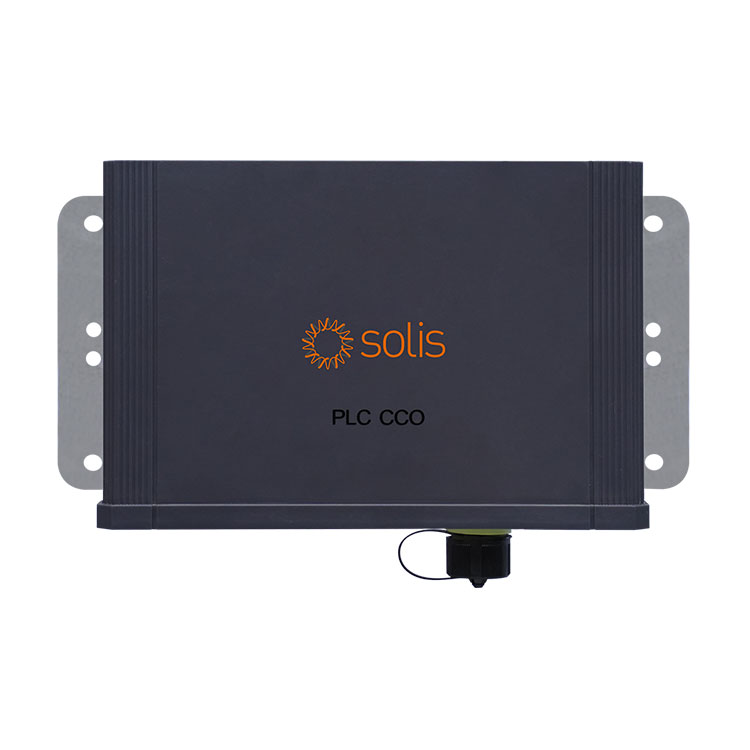

Solis PLC CCO

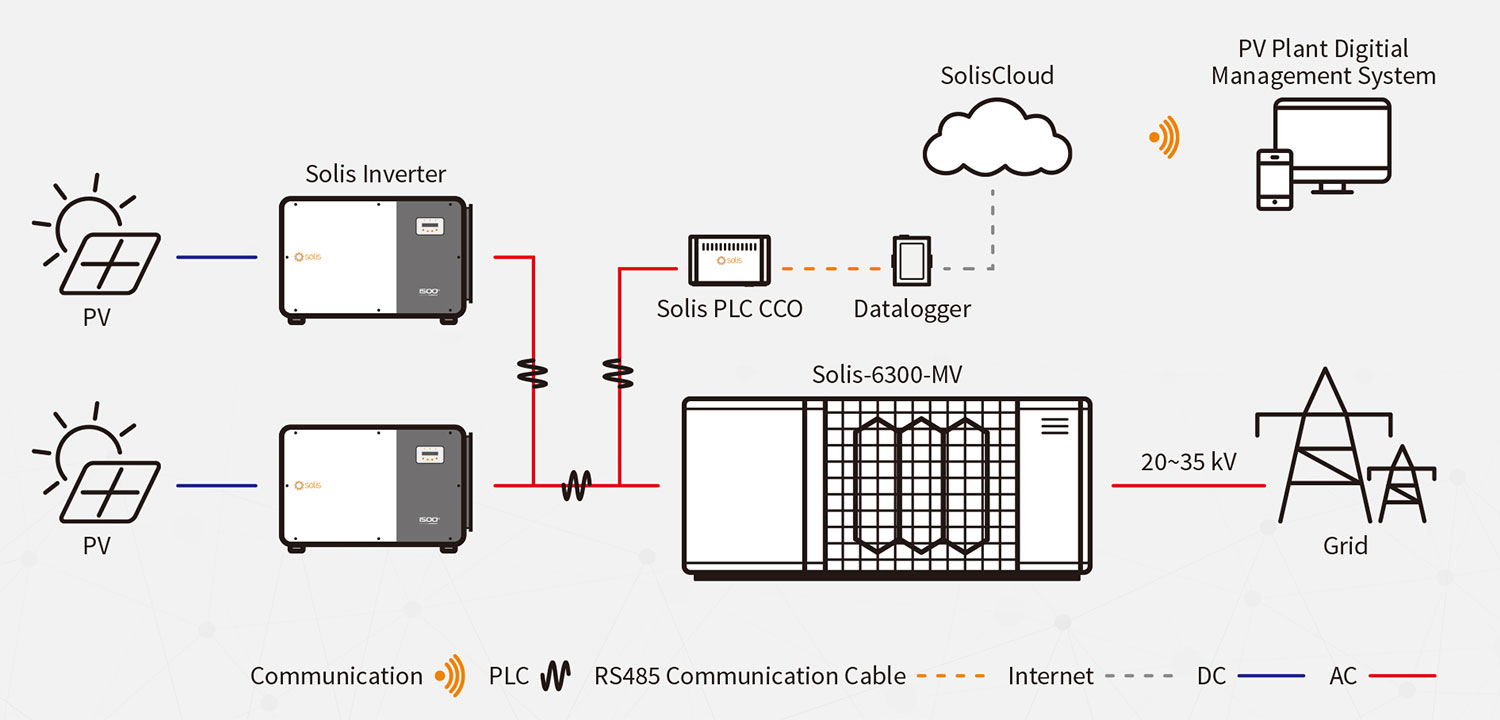

Solis PLC CCO (CCO: Central Controller) is applied in PV systems to achieve power line communication. Power Line Communication is transmission of data over the AC Wires of the system.
Detail
Features:
No need to lay communication cables, reducing construction costs and maintenance costs
Strong anti-interference ability
Support multi-terminal networking
Stable network connection, real-time data transmission
DATASHEET
| Electrical | ||
| Power supply | 100 V ~ 240 V AC, 50 Hz / 60 Hz | |
| Power consumption | <5 W | |
| AC port line voltage range | 0 ~ 621 V AC | 0 ~ 920 V AC |
| Environment | |
| Operating temperature range | -13°F to 158°F (-25 ~ +70°C) |
| Relative humidity (non-condensing) | 5% ~ 95% |
| Max. operating altitude | 4000 m |
| Communication | ||
| Max. number of connected inverters | 80 | 60 |
| Max. transmission rate | 9600 bit/s | |
| Mechanical | ||
| Dimensions (L*W*H) | 7.1*4.7*1.8 in (180*120*45 mm) | 10*6.5*1.8 in (255*165*45 mm) |
| Weight | 0.72 lb (325 g) | 1.1 lbs (485 g) |
| Protection degree | IP20 | |
| Installation method | Hanging installation or Din Rail installation | Hanging installation |
