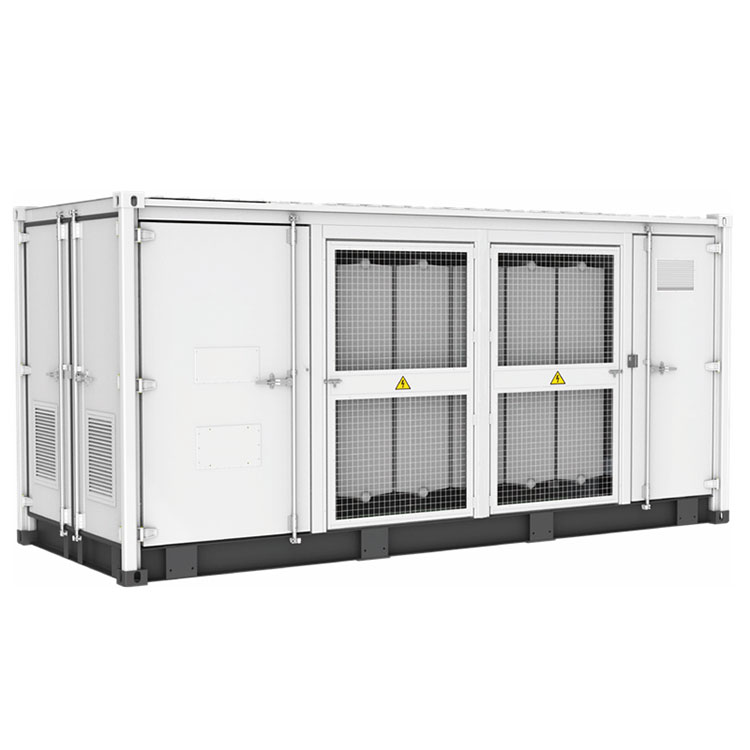

Solis MV Station For 1500 V string inverter Solis (125-255)K
Detail
Integrated delivery
Mainstream 4.2MW subarray, widely used globally
20 foot standard container delivery, easy to transport
Reliable products

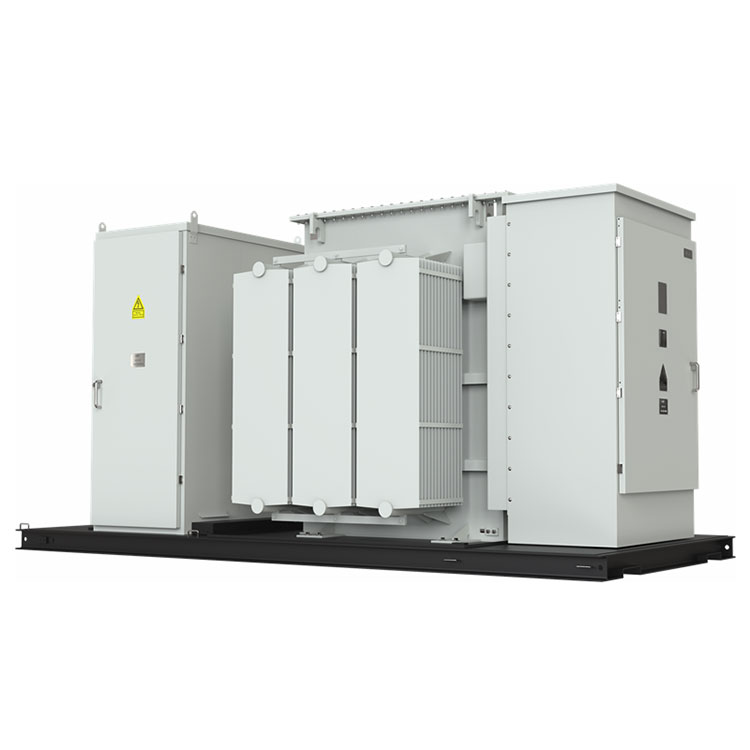

LV busbar, transformer and MV cabnet be placed independently
Adopt international first-line brand equipment with reliable quality
Convenient installation
A complete solution, from inverter to main stepup transformer
When the MV station is lifted to the foundation, only LV and MV cables need to be connected
Easy O&M
Full frontal maintenance design
Modular design of MV equipment, easy to replace

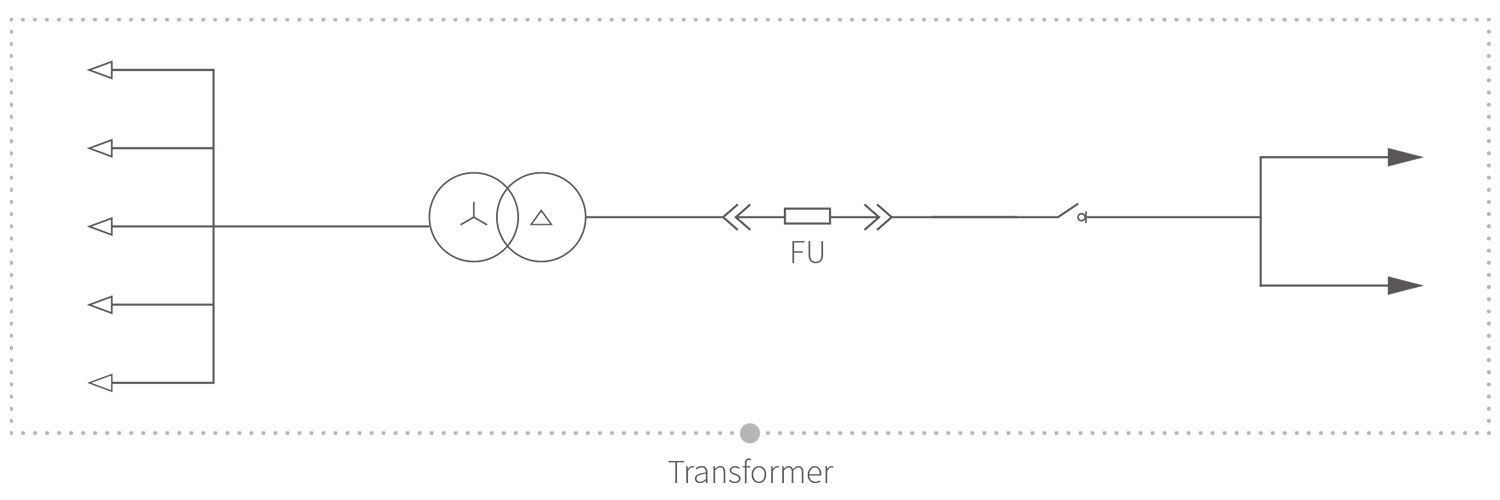

Circuit diagram
DATASHEET
| Models | Solis-4200-MV |
| LV panel | |
| MCCB specification | 250 A / 800 Vac / 3P, 18 pcs |
| ACB specification | 4000 A / 800 Vac / 3P, 1 pcs |
| Connection form with transformer | Copper busbar |
| Transformer | |
| Transformer type | Oil immersed |
| Rated output power | 4200 kVA @ 40°C |
| Max. output power | 4620 kVA @ 30°C 3h |
| LV/MV voltage | 0.8 kV / 34.5 kV |
| Max. input current | 3312 A |
| Tapping on HV | ±2*2.5% |
| Vector group | Dy11 |
| Frequency | 60 Hz |
| Cooling type | ONAN |
| Impedance | 7% |
| Oil type | Mineral oil (plant oil optional) |
| Winding material | Al / Al (Optional: Cu / Cu) |
| Insulation class | A |
| Protection | |
| LV surge protection | AC type I+II |
| AC input protection | Circuit breaker |
| AC MV output protection | Load switch + Fuse |
| Transformer protection | Oil-temperature, oil-level, oil-pressure |
| Fire protection | emergency lighting |
| General Data | |
| Dimensions (W*H*D) | 6058*2896*2438 mm |
| Approximate weight | 20 T |
| Operating ambient temperature range | -25 to +60°C |
| Max. operation altitude | 1000 m (standard) |
| Auxiliary power supply | 5 kVA / 240 V (Optional: max. 30kVA) |
| Degree of protection | IP54 |
| Allowable relative humidity range | 0-95% |
| Communication | RS485, Ethernet, Optical fiber |
| Compliance | IEC 60076, IEEE C57 |
