3.5/7kW Wall-Mounted AC Charging Station
· Housing material: Thermoplastic,flame retardant grade UL94 V-0
· Terminal: Copper alloy,silver plated on the surface
· Working environment temperature: -20℃ ~+50℃
· Rated working current: 16A/32A
· Working voltage: 250V
· Insulation resistance: >1000MΩ(DC500V)
Detail
Product Parameter
| Product Name | AC Charging Box (Plastic Type) | |
| Model | AF-AC-3.5-B-A-0-1-SA | AF-AC-07-B-A-0-1-SA |
| Overall dimensions (mm) | 150*150*65 mm | |
| Human-computer interaction | LED indicator strip | |
| AC power supply | 220Vac±20% ;50±10 Hz | |
| Rated input and output current | 16A 32A | |
| Rated output power | 3.5kW 7kW | |
| Working enviroment | Altitude ：≤2000 m; Temperature: -20°C~+50 °C | |
| Charging method | Plug and charge | |
| Networking methods | Bluetooth/WIFI/APP | |
| Operation mode | / | |

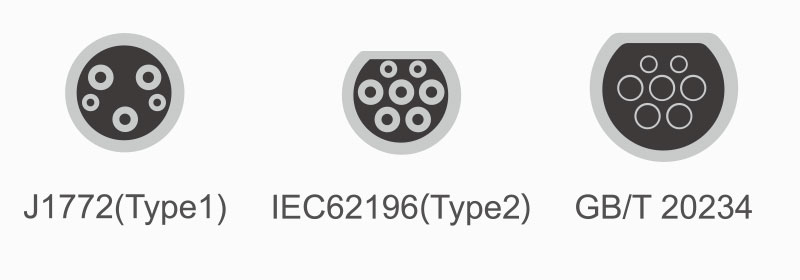

| Executive standard | IEC 61851-1:2017 ;IEC 62196-2 :2016 | |
| Charging cable length | Standard 5 meters(optional) | |
| Protection grade | IP54 | |
| Protection function | Overvoltage protection, undervoltage protection, overload protection , grounding protection , overcurrent protection, leakage protection , over temperature protection | |
