7/11/22kW Wall-Mounted/ Floor-Standed AC Charging Station
The AC charging station provides AC power with AC 50/60Hz and rated voltage 220V± 20% Charging electric vehicles with on-board chargers is mainly suitable for the following places:
· Large, medium and small electric vehicle charging stations;
· All kinds of electric vehicle parking spaces public places, such as urban residential quarters, shopping plazas, power business places, etc.;
· High-speed service areas, stations, docks and other transportation hub areas;
· Real estate and engineering construction acceptance needs.
Detail
Product Parameter
| Product Name | AC Charging Box (Plastic Type) | ||
| Model | AF-AC-07-8-A-0- 1/2/3/4/5-RZ-P | AF-AC-11-B-A-0- 1/2/3/4/5-RZ-P | AF-AC-22-B-A-0- 1/2/3/4/5-RZ-P |
| Overall dimensions (mm) | 400*280* 120mm | ||
| Human-computer interaction | LED indicator strip/4.3 inch screen | ||
| AC power supply | AC220V ±1 5% | AC380V ±15 % | AC380V ±15 % |
| Rated input and output current | 32A | 16A | 32A |
| Rated output power | 7kW | 11kW | 22kW |
| Working enviroment | Altitude ≤2000m; Temperature: -20°C~+50 °C | ||
| Communication protocol | OCPP 1.6J | ||
| Charging method | Swipe card, scan code | ||
| Networking methods | Ethernet/4G/WIFI | ||
| Operation mode | / | ||

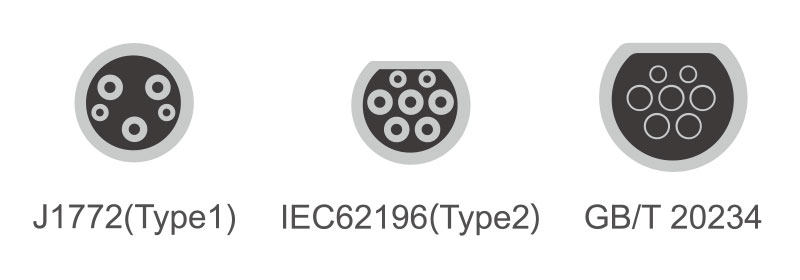

| Executive standard | IEC 61851-1:2017 ;1EC 62196-2 :2016 | ||
| Charging cable length | Standard 5 meters(optional) | ||
| Protection grade | IP54 | ||
| Protection function | Overvoltage protection , undervoltage pro tection , overload protection, grounding pro tection , overcurrent protection , leakage protection, over temperature protection | ||
